    Description
    Tubular screw Easy Clean

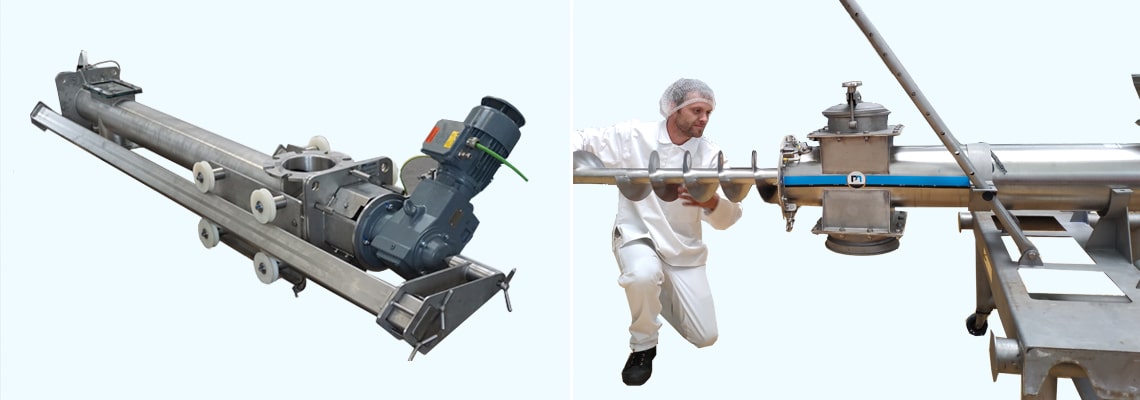

    Easyclean tubular screw conveyor ECD

    Easy clean Design Palamatic

    Quick and efficient cleaning

    The Easyclean screw conveyors allows complete removal of the screw flights for rapid and efficient cleaning of the whole system. The reduced amount of residual material is due to the small gap (flight clearance) between the helicoil and the tube (less than 5 mm).
    Easyclean screw conveyors are suitable for all conveying applications and/or extraction of powders and bulk materials where rapid and easy access to the inside part of the trough is essential for frequent cleaning. This model of screw conveying is particularly useful in the food, cosmetic, pharmaceutical or chemical industries.



    Clean In Place (CIP): optimized design to meet special needs
    For food or pharmaceutical processes, screws can be fitted with a water injection bar for cleaning by splash or spray.

    • Hygiene
      5
    • Rate
      3
    Partager la page

    Equipment advantages

    - Minimum residuals internally
    - Easy maintenance
    - Available with ATEX zone 20/22 or Class/Div design
    - Minimum gap (flight clearance) between the tube and external screw flight



    View our equipment in videos

    Vis tubulaire easyclean

    View our equipment in photos

    Easyclean design tubular screw

    Hygienic tubular screw

    Minimum space between the tube and the external coil (max:5mm).

    hygienic tubular screw palamatic process

    Hygienic tubular screw conveyor

    Easy maintenance thanks to the rapid removal of the coil.

    Conveying screw for confectionary applications

    Chocolate and confectionery products

    Handling of ingredients present in the composition of confectionary products.

    easyclean screw conveyor

    Fast disassembly design conveying screw

    Minimum residue inside the screw.

    mechanical conveying powder handling

    Mechanical conveying screw

    Installation of a hygienic conveying screw under a hopper for powder extraction

    mechanical conveying screw bulk handling solutions

    Easy clean screw Palamatic Process

    Easyclean screw conveyors are suitable for all powder conveying and/or extraction applications.

    tubular conveying screw bulk handling

    Minimum residue tubular screw

    Minimum retention and design for rapid disassembly.

    mechanical conveying screw bulk handling solutions

    Tubular screw conveying system

    Storage and transport for dissolving sugar in a weighed cast iron tank.

    Tubular screw conveyor - Bulk and powder handling

    Confectionery application

    Mechanical conveying for food industry applications.

    dust tight tubular screw palamatic process

    Mechanical conveyor for tank feeding

    Feeding of a polymer plant from big bag discharging stations. The pneumatic conveyor feeds the buffer hoppers (1300 liters) located on the dispensers.

    bulk handling screw conveyor

    Easyclean screw conveyor for reactor feeding

    Transfer of corn starch to feed a tank.

    processing screw conveyor

    Mechanical conveying truck loading

    Extraction of titanium dioxide for the industrial production of dyestuffs.

    tubular conveying screw bulk handling

    Extraction of the screw flight of the trough

    Easy maintenance thanks to the quick removal of the coil from the trough.

    tubular conveying screw bulk handling

    Hygienic desing for minimum retention of bulk materials

    Rapid and efficient cleaning of the screw conveyor.

    tubular easyclean screw conveyor

    Minimum residue inside the tubular screw conveyor

    Minimum space between the tube and the outer coil (5 mm maximum).


    easyclean screw conveyor bulk materials

    Conveying screw inspection

    Minimal residue inside the conveyor.

    internal view easyclean screw palamatic process

    Easy cleaning of the tubular conveying screw

    Cleaning in place, optimized design to meet specific needs.

    Technical specification

    Theoretical flow rate at 100% filling
    for DN168168
     25 m³/h.
    Inlet  Round with smooth edge Ø equal to the Ø of the tube
    Outlet  Round with smooth edge Ø equal to the Ø of the tube
    Engine  From 0,75 kW to 3,3 kW
    (possibility to install a frequency inverter)



    Available options

    • Mechanical conveying rotation controller
      Mechanical conveying rotation controller

      Rotation controller

      Rotation control of the conveying screw.
      This rotation controller is used for ATEX configurations.

    • Cementation of nuclear waste

      Processed powders: Cement + filler, lime and calcium nitrate - Cementation of nuclear waste - This process is intended for the cementation of fines and resins
    • Dried tomato powder process

      Processed product: dried tomato powder - Industrial process for tomato-based products - The application requested by the customer is for the filling of bulk bags and cartons at the outlet of the...
    • Manufacture of aperitif biscuits

      Processed powders: pumpkin seeds, linseed, sesame seeds, corn starch - New installation for the manufacture of biscuits and crackers - Emptying of big bags to feed a mixer
