    Description
    Industrial discontinuous vertical mixer - Bulk materials and powder handling

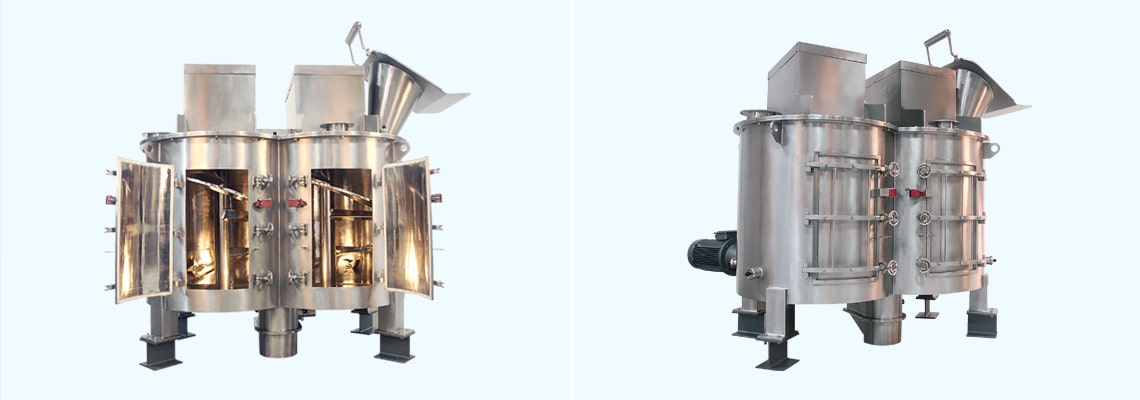

    VERTICAL RIBBON MIXER DISCONTINUOUS ECD

    Easy clean Design Palamatic

    Small dimensions



    Morotor vertical ribbon mixer: high mixing quality due to the three-dimensional effect

    The vertical mixer with single shaft performs quality mixing of dry, moist and viscous materials. This mixer is ideal for the food industry as it complies with hygienic standards. It provides excellent mixing results, regardless of the materials to be mixed, through the helical movement of the central blade.


    Birotor vertical ribbon mixer: mixing solution for dry, moist and viscous materials

    The double vertical shaft mixer offers a delicate treatment of dry, wet and sticky materials during mixing operations. The spiral blade of the vertical mixer activates a three-dimensional mixing of materials. This mixer can be used for dry powder, wet suspensions, liquid or pasty materials.



    Knife mixer
    • Complexity of mixtures
      5
    • Rate
      3
    • Hygiene
      4
    Partager la page

    Equipment advantages

    - Small dimensions
    - Discharge valve included
    - Wide doors for maximum accessibility
    - Cleaning in place (CIP)
    - Optional side shear blades
    - Polished welded parts for a hygienic finish
    - Multiple material entries possible
    - Can be mounted on load cells for dosing operations

    View our equipment in photos

    Easy Clean Design Mixer

    Vertical powder mixer

    Industrial powder mixer on a mixing and feeding line for raw materials for cementing in the nuclear sector.

    multi inlet mixer

    Mixing line and baby food homogenization

    Client: food factory
    Materials: milk powder and vitamins
    Installation details: loading of ingredients packed in big bags and sacks with pre-weighing in a dedicated room to ensure complete hygiene.

    monorotor industrial mixer

    Food powder mixing solution

    Powder mixer on a raw bulk material de-packing line, masterbatch mixing preparation and incorporation on an extruder line.

    cip mixer

    CIP system for industrial mixers

    Cleaning nozzle in place placed in the hopper of the industrial mixer.

    double rotor vertical industrial mixer

    Premix for spread manufacturing

    Dairy products powder processing line
    Materials: milk powder, sugar, alginate cocoa
    Installation details: preparation and mixing line with manufacturing in masked time for introduction into a powder disperser. This technology was chosen for its cleanability and sanitation characteristics considering the absence of bearing in the mixing. The prepared mixture is packed in industrial containers thus allowing management of masked time.

    industrial vertical mixer

    Industrial vertical mixer

    Internal view of the polished mirror vertical mixer.

    Technical specification

    • Vertical move of the material
    • Soft brewing of all the contents
    • High quality mixing and short cycles
    • Filling level from 10% to 100% of the volume
    • Minimum space between the walls and belt to prevent any material agglomeration
    • No retention, continuous movement of the materials to be mixed

    Dimensions

    Morotor vertical ribbon mixer VM

    Industrial discontinouous mixer - Bulk materials and powder handling

































    Models Mixing capacity (l.) A B C D Power kW
     VM    500 500 2,050 1,900 880 1,115 7,5
     VM 1 000 1,000 2,050 2,155 1,212 1,200 11
     VM 1 500 1,500 2,250 2,600 1,410 1,235 11
     VM 2 000 2,000 2,350 2,600 1,515 1,500 15
     VM 3 000 3,000 2,350 3,550 1,515 2,200 22
     VM 4 000 4,000 2,750 3,400 1,900 1,900 3

    Morotor vertical ribbon mixer VTM

    Vertical mixer Palamatic Process



    Models Mixing capacity (l.) A B C D E Power kW
     VTM 1 000 1,000 1,780 1,610 145 450 990 11
     VTM 1 500 1,500 1,950 1,760 145 520 1,140 15
     VTM 2 000 2,000 2,170 1,960 145 620 1,280 22
     VTM 2 500 2,500 2,500 1,935 145 710 1,250 22
     VTM 3 000 3,000 2,500 1,940 145 710 1,415 30
     VTM 4 000 4,000 2,780 2,140 145 710 1,560 37
     VTM 5 000 5,000 3,040 2,260 145 710 1,680 45





    Available options

    • Industrial mixer - Bulk materials and powder handling
      Industrial mixer - Bulk materials and powder handling

      inspection hatch

      The inspection hatch allows to control and validate the good quality of the material mixture. In addition, the hatch facilitates access to all internal parts of the mixer to ensure complete cleaning.

    • Industrial blender - Bulk materials and powder handling
      Industrial blender - Bulk materials and powder handling

      Weighing of the mixer

      Load cells to inform the process about the quantity of powder introduced.

    • Infant milk powder preparation

      Product concerned: infant milk powder - Infant milk powder preparation - Industrial specialized in baby food production - The process consist of conditionning infant milk powder in diverse containing...
    • Mixing process for baby food

      Processed powders: micronutrient powders - Mixing process for baby food - The customer is a Swedish manufacturer for an international distributor.
    Download the booklet
    Download the sheet
