The challenge of producing powdered activated carbon (PAC)
Secure your micropollutant adsorption process with a "Plug & Play" suspension solution, certified HAZLOC and optimised for water and flue gas treatment.
Activated carbon is a powerful ally in the removal of PFAS, pharmaceutical residues, pesticides and organic matter. However, its industrial handling presents a major challenge: extreme volatility, explosion risk (HAZLOC), and difficulty in wetting (clumping).
The PalBlack Skid® from Palamatic Process is a containerised, integrated robotic production unit designed to transform raw carbon powder into a perfectly homogeneous, precisely metered slurry that is ready to be injected into your network.
Why is in-house slurry production cost-effective?
- Reduced transport costs: You purchase dry powder (which is lighter) rather than ready-made liquid solutions.
- Reagent freshness: A slurry prepared on demand retains its maximum adsorption capacity.
- Complete control over dosing: Adjust the concentration of your suspension in real time according to the pollutant load in your incoming flow.
| PALBLACK SKID® 4 | PALBLACK SKID® 14 | PALBLACK SKID® 28 | |
|---|---|---|---|
| Total tank capacity | 500L | 1500L | 3000L |
| Tank capacity | 400L | 1350L | 2800L |
| Coal supply | Bag-emptying station | Big bag emptying station | Silos |
| Dosage | Precision dispenser | Feeding screw | Extraction and metering screw |
| Dispensing of the reagent | 2 peristaltic pumps | 2 peristaltic pumps | 2 peristaltic pumps |
| Type | 20-foot container | 20-foot container + pre-assembled big bag station | 20-foot container + silos |
-
Automation4
Areas of application and sectors
The PalBlack® skid is designed for demanding environments where reliability cannot be compromised:
- Drinking water and wastewater treatment (WWTP): Removal of micropollutants and endocrine disruptors, and compliance with the new European directives on urban waste water.
- Flue gas treatment (MSW incineration plants): Injection of activated carbon to reduce dioxins, furans and heavy metals (mercury) in household waste incineration plants.
- Food and pharmaceutical industry: De-oiling, decolourisation of liquid solutions or purification of active ingredients in sterile or confined environments.
Everything you need to know about the activated carbon production skid
Is the PalBlack Skid® compatible with all types of carbon?
Yes, whether it is wood, coal or coconut-based activated carbon, in powder (CAP) or micro-grain form, our dosing and mixing system adapts to the specific particle size of your reagent.
How do you manage the risk of explosion (HAZLOC)?
All electrical components (motors, sensors, controllers) are certified for potentially explosive atmospheres. Furthermore, the container enclosure limits the accumulation of combustible dust outside the system.
Can the skid be controlled remotely?
Absolutely. Our control cabinets are equipped with communication protocols (Profinet, Ethernet/IP) enabling alarm reporting and full control from your central control room.
What is the service life of peristaltic pumps?
We use high-strength tubing and a slow rotation speed to maximise the service life of consumables, thereby reducing your maintenance costs (OPEX).
Equipment advantages
- Installation Plug & Play
- Reliability
- Compliance with the HAZLOC standard
- Low maintenance
- Integrated automation
Media
View our equipment in photos
Control cabinet
PalBlack control cabinet
PalBlack tank
Tank interior
Carbon black dustpan
Loading the container
Remote control
Diagram of the Palblack line

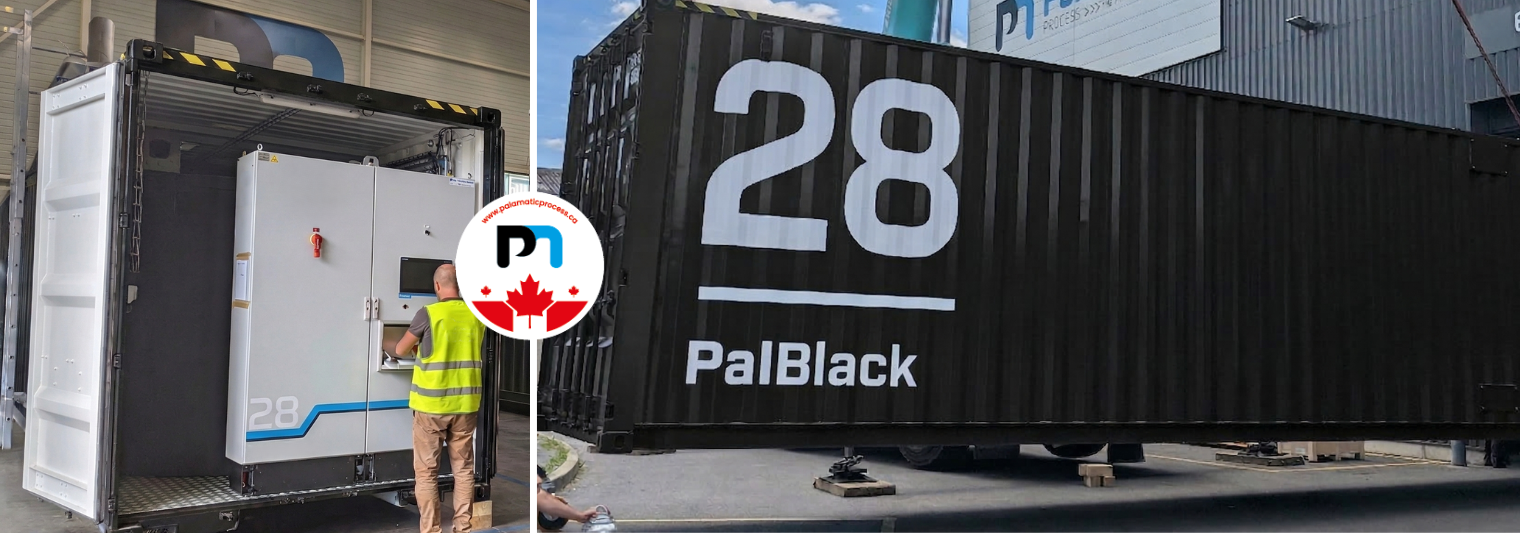

Palblack container
Container ready for use
Empty interior of the Palblack container
Inside the 28-foot PalBlack container.
Carbon black process
Carbon black
Palblack maintenance
Maintenance of the Palblack line
PalBlack 14 container
Transport Palblack
3D Diagram of PalBlack
Features
Technical specification
the ‘Zero Dust’ wetting system
One of the biggest sticking points with competing solutions is the management of residual dust. The PalBlack Skid® incorporates proprietary hybrid wetting technology:
- Controlled vortex: The black (high-density) HDPE tank is fitted with a high-shear mixer and anti-vortex blades.
- Bottom wetting or vacuum injection: Unlike conventional systems where the powder ‘falls’ onto the water, our system forces the carbon particle to come into contact with the water molecule, instantly eliminating any volatile emissions.
- Controlled atmosphere: The container’s sealed enclosure confines the dosing equipment. In the event of a leak, the pollutant remains trapped within the skid.
Options
Available options
-
Double the number of pumps
Parallel configuration to ensure 100% redundancy (service reliability).
-
Clean-in-Place (CIP)
High-pressure flushing cycles to prevent carbon build-up during prolonged shutdowns.
-
Concentration analysis
Integration of turbidity sensors to monitor the density of the slip slurry at the skid outlet.
-
Thermal insulation
For outdoor installations in extreme weather conditions (cold or hot)
