SackBot 100 series, robotic depalletizing with bag cutting and emptying

  • Essai
  • Plan d'accès
    Description
    Header SackBot 100 - EN

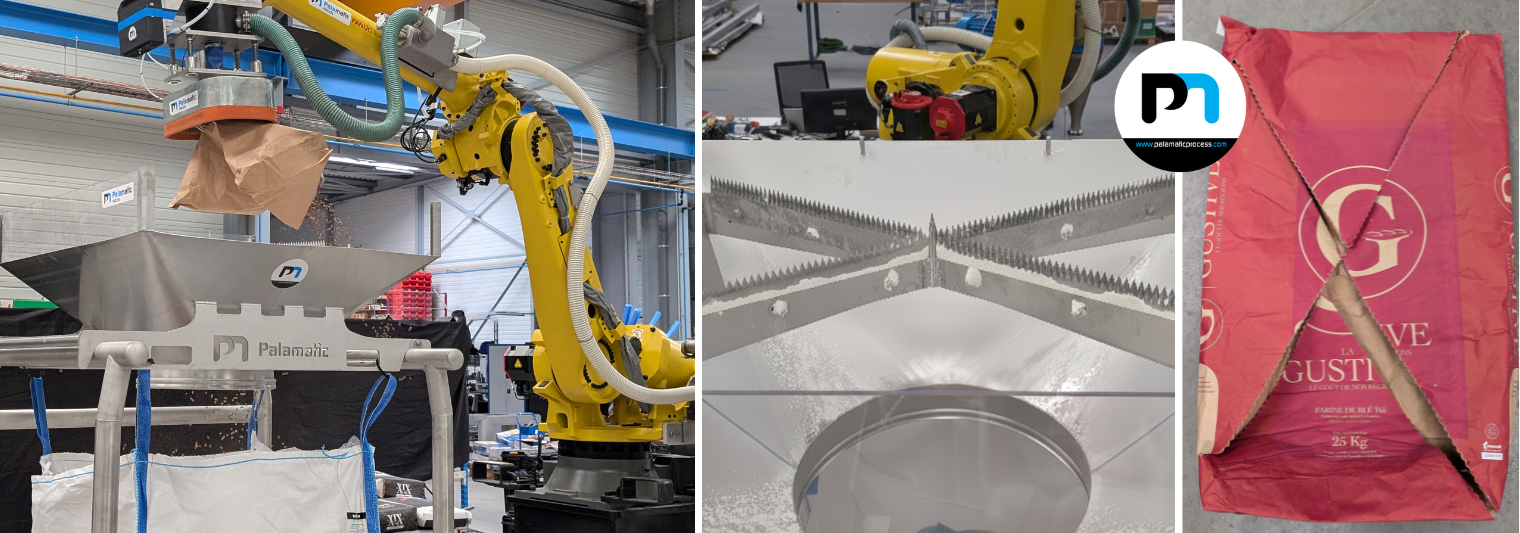

    The SackBot Series 100 for bag emptying — precision, cleanliness, and safety serving your productivity.

    The SackBot range offers robotic solutions for bag handling using vacuum or grippers, designed to feed cracking hoppers and supply your processes.

    The SackBot Series 100 range, which includes the models SackBot 100 cut X, SackBot 100 cut F, SackBot 100 cut R, and SackBot 100 cut M, has been designed to meet the modern challenges of bag handling and emptying in the most demanding industrial environments.

    Whether dealing with fine powders, granular products, or complex materials, the SackBot Series 100 robots stand out for their precision, efficiency, and ability to integrate seamlessly into various production lines.

    From processing plastic pellets to fine and difficult powders, each model provides a tailored response to the specific needs of manufacturers, helping to improve productivity, reduce risks for operators, and ensure optimal continuity of production flows.



    • Automation
      5
    • Hygiene
      5
    • Rate
      4

    The SackBot Series 100, a robotic solution designed to boost your industrial performance

    Sackbot Series 100 range



    A complete range of robots for diverse needs

    Designed to handle the most complex powders and various types of bags, this robot features cutting and emptying technology that ensures consistent and flawless results.

    The Series 100 offers 4 different cutting models to suit your specific requirements:

    • Cut X Series: Fixed cross-cutting blades – ideal for granular products
    • Cut F Series: Single fixed cutting blades – ideal for free-flowing sensitive products
    • Cut R Series: Rotary disc cutting blades – ideal for tough bag materials
    • Cut M Series: Mobile blades on guiding units – ideal for maximizing bag opening and reducing retention zones

    Thanks to its various cutting systems, the SackBot 100 is capable of handling a wide range of bags and powders, including those with hygroscopic or compact properties.



    Sackbot série 100



    A wide range of compatible bags

    Equipped with gripping claws, the SackBot’s handling head can manage jute bags, which cannot be handled by vacuum due to their material properties:



    type of bags

    The robots integrate gripping systems adapted to the diverse needs of production lines.

    Variants Pallet detection method Associated applications
    A


    Palletizing plan

    Plan de palettisation Sackbot 100

    Stable configurations

    Configuration Stables Sacbot100
    B


    Camera - 3D vision

    Caméra Vision 3D Sackbot100

    Random configuration

    Configuration aléatoires Sackbot100

    System A:

    • Autonomous operation using pre-programmed palletizing layouts.
    • Strategic range allowing manipulation of up to 4 different pallets.


    System B:
    3D vision technology for precise detection of bags on pallets, even on uneven layers — reducing errors and increasing operation quality.

    3D Vision System, a solution tailored to all your needs

    The SackBot 100 and SackBot 200 series robots are equipped with an intelligent 3D vision system that analyzes the layer of bags on your pallets in real time.

    Advantages of the 3D vision solution:

    • Detection of the exact position of the bags
    • Efficient picking of bags, even in irregular arrangements
    • Over 100 possible selection criteria for bag identification (colors, patterns, 3D shapes, depth, etc.)
    • System capable of identifying bags from different brands and selecting only the desired ones
    • 2D bag analysis possible using distinguishing criteria to ensure proper orientation — e.g., MiniSlit feeding (see SackBot 200 Series)

    Customer Benefits with the SackBot Series 100

    Protected Operators

    By handling bags automatically, SackBot eliminates the risk of musculoskeletal disorders (MSDs) related to manual bag handling by operators.

    Reduced Operational Costs

    By automating repetitive tasks, the SackBot Series 100 minimizes the risk of human error, thereby reducing maintenance and safety-related costs while increasing overall profitability. Its high-performance 3D vision system enables adaptation to all types of situations.

    A Flexible Solution for Complex Environments

    The SackBot Series 100 is capable of handling a wide variety of bags and powders, even those with challenging properties. Equipped with multiple cutting systems, its versatility ensures easy adaptation to your needs, regardless of your industry.

    Guaranteed Compliance and Hygiene

    SackBot can be equipped with an integrated dust extraction system. With its hygienic design, it ensures a clean, safe working environment that complies with international regulations.

    Increased Productivity

    With the SackBot Series 100, your teams can process a wide variety of bags and powders without interruption. This efficiency gain leads to reduced downtime and a significant increase in production rates.

    Available Options

    Confined Hopper for Powdered Products Stretch Film Removal Machine Linear Axis
    Tremie confinee Sackbot100
    Machine a enlever film etirable Sackbot100
    Axe lineaire Sackbot100
    Prevents dust dispersion.
    Possible connection to a dust extraction system.

    Automatically removes
    the stretch film from your pallets.

    Allows the robot to move on an additional axis, up to 12m.



    Partager la page

    View our equipment in photos

    Sackbot SB100

    Cutting Hopper – Cross Blade

    The automatic bag handling unit enables robotic picking of bags from a pallet and their emptying into a receiving hopper.

    Sackbot SB200

    Vacuum Bag Gripping Unit

    Vacuum bag gripping unit equipped with:

    • Rectangular suction cup
    • Pneumatic clamp
    • Side channel vacuum pump - 3.3 kW
    • Safety filter and relief valve
    • Set of hoses
    Sackbot SB100 - Unité de craquage des sacs

    Bag cracking unit

    Static spike used for the automatic opening of bags using gravity and weight.
    No human intervention required.

    Technical specifications:

    • Removable cutting blade for maintenance or cleaning
    • Mounted directly above the inlet of the buffer hopper
    Fanuc iRvision 3D sensor

    Robotic arm

    FANUC R-2000iC/125L robotic arm and its control unit

    SackBot SB100

    Automatic bag depalletising and emptying unit - SackBot 100®

    The unit is equipped with the following functions:

    • Picking up bags from a pallet location
    • Automatic detection of the top layer of the bag on the pallet
    • Picking up a bag using a vacuum gripper
    • Transferring each bag to a fixed blade system for automatic opening
    • Gravity discharge of the product into a buffer hopper
    Setting bag recognition criteria

    Setting bag recognition criteria

    Cracking hopper

    Cracking hopper

    Overview of robot + cracking hopper

    Overview of robot + cracking hopper

    Suction cup gripper with 3D vision system

    Suction cup gripper with 3D vision system

    Cracked bags with cross-cut blades

    Cracked bags with cross-cut blades

    3D and 2D analysis of bags from different brands - Copying

    3D and 2D analysis of bags from different brands

    Feeding a confined cracking hopper

    Feeding a confined cracking hopper

    Cracking of granule bags

    Cracking open bags of flour

    Cracking flour sacks

    Cross-cut blade seen from below

    Cross-cut blade seen from below

    Cross-shaped cutting blade seen from below - 1

    Cross-cut blade seen from below

    General view

    General view

    Détails techniques et applications

    Technical Details of the SackBot 100

    • Robotic arm, maximum height of 3100mm and weight of 1700kg.
    • Gripping head equipped with a suction cup for reliable bag handling.
    • Equipped with claws for handling empty bags and difficult bags.
    • Side channel vacuum pump, safety filter, and relief valve.
    • Cracking hopper with 4 compatible cutting systems Safety enclosure.
    Model SackBot Cut X SackBot Cut F SackBot Cut R SackBot Cut M
    Product Types Plastic pellets, sand, IQF frozen products Free-flowing, fragile products All types of powders Difficult products: milk powder, flour
    Bag Types Single-layer kraft plastic bags Single-layer kraft plastic bags Difficult bags: woven with inner sachet Plastic bags, single-layer kraft
    Theoretical Rate 5 to 6 bags/min. 5 to 6 bags/min. 5 to 6 bags/min. 5 to 6 bags/min.
    Bag Opening Tools Fixed cross blades Single fixed blade Rotary disc blade Mobile blades positioned in a cross and driven by guide units
    Advantages Easy to clean thanks to a fixed system - Easy to clean
    - Easy blade removal
    - Clean and precise cutting
    Effective cutting for all bag types Cuts over the entire surface, reduces retention areas and optimizes emptying
    Disadvantages Does not accept all bag types Does not accept all bag types Lower throughput compared to other models. Lower throughput compared to other models

    Possible configurations

    Fixed Base Robot without 3D Vision Mobile Base Robot without 3D Vision
    Robot sur socle fixe sans vision 3D Sackbot100
    Robot sur socle mobile sans vision 3D Sackbot100



    Gripping bags following a defined palletizing plan: regular bag layers, pallets always placed in the same position.
    Up to 4 pallets handled simultaneously for the fixed version.



    Fixed Base Robot with 3D Vision Mobile Base Robot with 3D Vision
    Robot sur socle fixe avec vision 3D Sackbot100
    Robot sur socle mobile avec vision 3D Sackbot100



    Gripping bags using the 3D vision system: irregular layers, pallets in variable positions, specific bag identification.
    Up to 4 pallets handled simultaneously for the fixed version.

    Why choose Palamatic Process for your SackBot robots?

    Recognized Technical Expertise

    At Palamatic Process, we understand the unique challenges faced by modern industries. That’s why we develop custom equipment, like the SackBot range, which meets the highest standards in safety, efficiency, and regulatory compliance.

    Solutions Tailored to Each Client

    By collaborating with our experts, you benefit from an in-depth analysis of your needs, ensuring the seamless integration of the SackBot 130 into your production line. Our robots help you increase productivity while maintaining impeccable quality standards.

    Comprehensive and Ongoing Support

    From feasibility studies to post-installation maintenance, our team is by your side to maximize your equipment’s performance. This support ensures a quick return on investment and lasting satisfaction.

    Switch to automation with the SackBot range!

    Available options

    • Trémie confinée pour produits pulvérulents
      Trémie confinée pour produits pulvérulents

      Confined hopper for powdered products

      Prevents dust from spreading. Can be connected to a dust extraction system.

    • Machine à enlever le film étirable
      Machine à enlever le film étirable

      Stretch film removal machine

      Allows you to automatically remove stretch film from your pallets.

    • Axe lineaire
      Axe lineaire

      Linear axis

      Allows the robot to move along an additional axis, up to 12 metres.
