Processed product : Milk powder

Premix line for infant milk powder



This subsidiary company from one of the first milk group in the world, develops a wide range of functional and nutritional milk ingredients for nutrition and food industry.

This company is implanted in France and around the world. It contacted us for an unloading bulk bag and sack project for a production site in Poland.

The processed material is powdered milk with a bulk density of 450kg/m³. From the drying of the milk, the milk powders are skimmed or whole. Those powders are used in various applications in total or partial replacement of liquid milk because of advantages they offer.

This milk powder is intended for manufacturing of some of the followings products: butter, mozzarella, powdered cream

The objective was to unload bulk bags and sacks in a clean room for feeding a liquiverter by a pneumatic conveying system. The main constraint was the respect of HACCP system which is a method to prevent sanitary risks in food industry. Emptying sacks and big bags is made thoughtout interfaces allowing to remain hygienic areas.

The solution proposed by Palamatic Process is an unloading bulk bags and sacks station with a sack compactor integrated. The powdered milk is conveyed by a pneumatic conveying thought a vibratory sieve for eliminate foreign bodies to a cyclone and finally feed the liquiverter.


For depacking sacks (25kg) and bulk bags (1000kg)

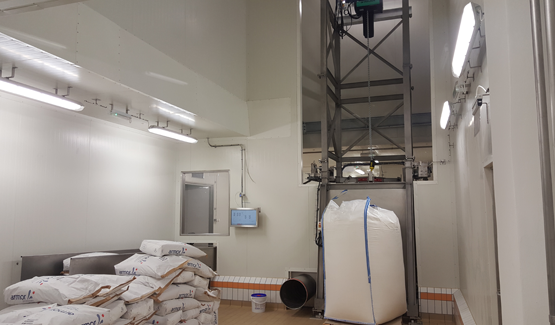

The sack and big bag discharger Duopal® is designed for manual opening of all sacks and bulk bags on the same discharge area. The operator deposes the sack on a tablet and opens it on the sieve which fills the hopper placed below.

This kind of station offer a great flexibility of sacks and bulk bags sizes used. Bulk bags unloading standard stations can unload bulk bags of 2200mm high. Futhermore, it allows the discharge in an ergonomic way with the use of electric hoist. Dust emissions are reduced to a minimum thanks to the introduction of  effective containment components (rubber seal on the main tray, anti-overflow tube) and the integration of an Atex dust collector. A sack compactor is also integrated.

After emptying, the operator puts the empty sack in the compactor for reducing the waste volume and the exposure of fines. The work space is kept clean and healthy.

Technical specifications :

  • Stainless steel 304L
  • Max. weight: 1,500 kg
  • Safety bar for the big bag support bracket

Options requested by the customer:

  • Telescopic tube: sealed connection of the big bag and tension on the big bag cuff
  • Hoist: handling of big bags
  • Vibrator/Vibrating bin aerator: to optimize the flow
  • Massage: flow aid thanks to the jacks that break the vaults and break the mass setting
  • Weighing under structure: weighing of the big bag station for precise feeding of the downstream process
pneumatic conveying bulk materials palamatic process
milk powder filling system palamatic process

    For sieving milk powder

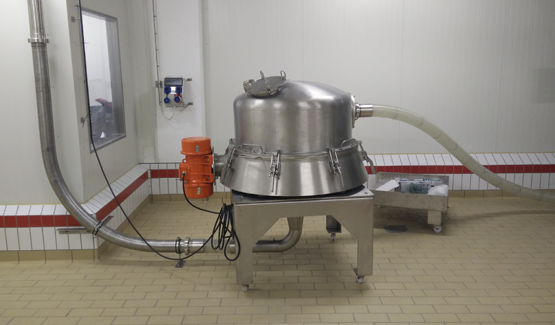

    A vibrating screen Gyrator GSC900 was supplied. It allows an in-line application on the piping of a pneumatic conveyor. It is used for the protection of production machines and the elimination of agglomerates and foreign bodies from your powders. It guarantees the hygiene and safety of the process. Due to its design, the vibrating screen does not have any retention area. The flange assembly ensures easy assembly and disassembly. Its construction is robust, reliable and of very high quality.

    Technical specifications:

    • Capacity of 5 t./h.
    • Sieve diameter: 900 mm
    • Product infeed: pneumatic conveying inlet DN100

    Standard options requested by the customer:

    • Inspection hatch: allows inspection and cleaning
    • In-line vibrating screen on pneumatic conveying: simplifies screening
    • Additional sieving grid: to adapt to the different grain sizes manufactured.
    • Frame on wheels: allows the screen to be moved effortlessly


    For the conveying of the processed material
    The version proposed by Palamatic Process was the VFlow®05. It is a continuous vacuum conveying system that ensures that the characteristics of powders, granules or bulk materials are respected. This equipment is suitable for demanding materials with zero retention and does not degrade it. It also keeps the atmosphere healthy and dust-free.


    Technical specifications:

    • 5 t./h. for an average density of 0.7
    • Multiplier coefficient on max. flow rate: 8
    • Stainless steel 304L

    Options requested by the customer:

    • Pneumatic vibrator: product flow aid
    • Vibrating bin aerator: to optimize the flow
    • Line purge system: optimized emptying of the pipework at the end of loading

    INTEGRATED EQUIPMENT

    Big bag & sack discharging - Untying box - Duopal DP0

    Unlacing cabinet, Sack discharging unit, Big bag discharging unit

    Pneumatic conveying - Dense phase vacuum - VFlow® - 5 models

    All bulk materials, No material degradation, Line purge

    Sack compactor

    Reduce waste volume, Containment, Healthy dust-free atmosphere, All types of bags

    Vibratory sieve on pneumatic conveying line

    Flow optimization, Hygiene, Process safety, Agglomerate destruction, High flow rates, Minimum maintenance
