Safetip® STD: Bag emptying station with modular sieving machine
The Safetip® STD is a manual emptying station that is hygienic, designed with an electric motor-driven vibrating sieve. It combines hygiene, ergonomics and safety for industry and guarantees the absence of foreign objects and consistent product quality. The vibrating sieve is integrated directly into the bag emptier, allowing you to add your ingredients in a completely safe manner.
The sieve mesh size depends on your powders removed from bags. In general, the sieve mesh size is between 1.5 mm and 4 mm.
The range of SH bag emptying machines is available in various designs: from a simple ergonomic housing to a fully enclosed housing with insulated gloves for the operator.
Housing, multifunctional emptying cabin: our standard models are available in various sizes and versions of the containment housing / 5 main versions:
- S01 Economy version: Economy version with platform and edges to centre the powder being laid.
- S02 Cabin version: with a closed extractor hood without a door, but with a possible connection to your dust extraction system.
- S03 Cabin with door: fully enclosed bag dump cabin with hinged door and gas springs. The door can be equipped with gloves for handling powders without contact with the operator.
- S03 X Cabin with glove box door: fully enclosed bag dump cabin with hinged door and gas springs. The door is equipped with gloves for handling powders without contact with the operator.
- S04 Compact version: to avoid bellows seals, the protective cover is an integral part of the vibrating screen and only a fixed, non-vibrating table allows the operator to empty bags ergonomically and comfortably.
- S05 "Tunnel" discharge funnel: "Tunnel" discharge funnel for a large buffer capacity of your screened powders.
|
Model |
ST 600 |
ST 900 |
|---|---|---|
|
Opening width |
800 mm |
1000 mm |
|
Length of the pockets |
650 mm |
850 mm |
|
Ø Sieve |
600 mm |
900 mm |
-
Hygiene5
Comparison Table: Safetip® Bag Emptying Station Range
| Range | ST-01 | ST-02 | ST-03 | ST-03X | ST-04 | ST-05 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overview | ||||||||||||
| Usage | Open version Anti-overflow edges |
Closed hood without door for connection to dust extraction system | Closed enclosure Glass door hinged on gas struts |
Upgrade of the ST-03 with glove box | Monobloc: the cover is integrated into the sieve Fixed deposit table |
Large volume: elongated discharge hopper serving as buffer storage | ||||||
| Tablet height from floor (mm) | 900 | |||||||||||
| Discharge flange height (mm) | 480 | 480 | 480 | 480 | 480 | |||||||
| Model (Ø Screen mm) | 600 | 900 | 600 | 900 | 600 | 900 | 600 | 900 | 600 | 900 | 600 | 900 |
| Stripping (m³/h) | / | 800 | 1000 | 800 | 1000 | 500 | / | 800 | 1000 | 800 | 1000 | |
| Ø Product output (mm) | 200 | 250 | 200 | 250 | 200 | 250 | 200 | 250 | 200 | 250 | 600 | |
Operating procedure:
- Open the door mounted on gas cylinders and place the bag on the removable table
- Place the bag on the sieve
- Open the bag
- Emptying the bag
- Activating the vibrating sieve to remove all foreign bodies contained in the material
Structure and Ergonomics
- Receiving frame: Sturdy emptying hopper on legs with integrated connection for connection to the dust extraction system.
- Bag support: Removable support grid (screen) positioned above the sieve for easy handling.
- Safety: Integrated safety cutter for precise and effortless opening of bags.
- Access (optional): Hinged door assisted by gas struts, ensuring automatic holding in open or closed position.
Vibrating Screening System
- Motorisation: Industrial electric motor vibrator (400V / three-phase / 50 Hz power supply).
- Sieve design: Conical body with smooth-edged central outlet for complete evacuation without retention zones.
- Filter media: High-strength screen mesh glued to interchangeable frame.
- Assembly and tensioning: 3-arm clamping flange with central threaded retaining ring for rigid and quick assembly.
- Mechanical isolation: Suspension on coil springs and flexible compensation sleeves to isolate vibrations from the rest of the structure.
Key advantages of the screening station
- Screening flexibility: Interchangeable screen grid, perfectly suited to different products or the most stringent quality standards.
- High-strength stainless steel design: Robust construction in stainless steel for long-lasting use, even in the most demanding industrial environments.
- Optimised operator ergonomics: Adjustable working height and reduced handling for improved comfort and safety at the workstation.
- Quick maintenance: Quick screen change for maximum adaptability during production changes.
- Adaptability and safety: Options available in ATEX versions, with advanced containment solutions and integrated dust extraction systems.
Equipment advantages
- Enhanced protection: Built-in, interchangeable sieve that traps all impurities from your powders and ingredients.
- Flexible adjustment: Adjustable amplitude and intensity of the vibrating sieve. Quiet electric motor (no noisy pneumatic vibrator).
- Optimal hygiene: Mirror-polished finish and rounded corners to eliminate retention areas and facilitate flow.
- Easy handling: Sieve and grid can be removed quickly and without tools for safe access.
- Simplified cleaning: Intuitive grid removal saves considerable time during washing cycles.
Media
View our equipment in videos
Discover our range of bag emptying machines with integrated Safetip® sieve
Discover our range of bag emptying machines with integrated Safetip® sieve
View our equipment in photos
Sieve
Modular sieve for easy cleaning

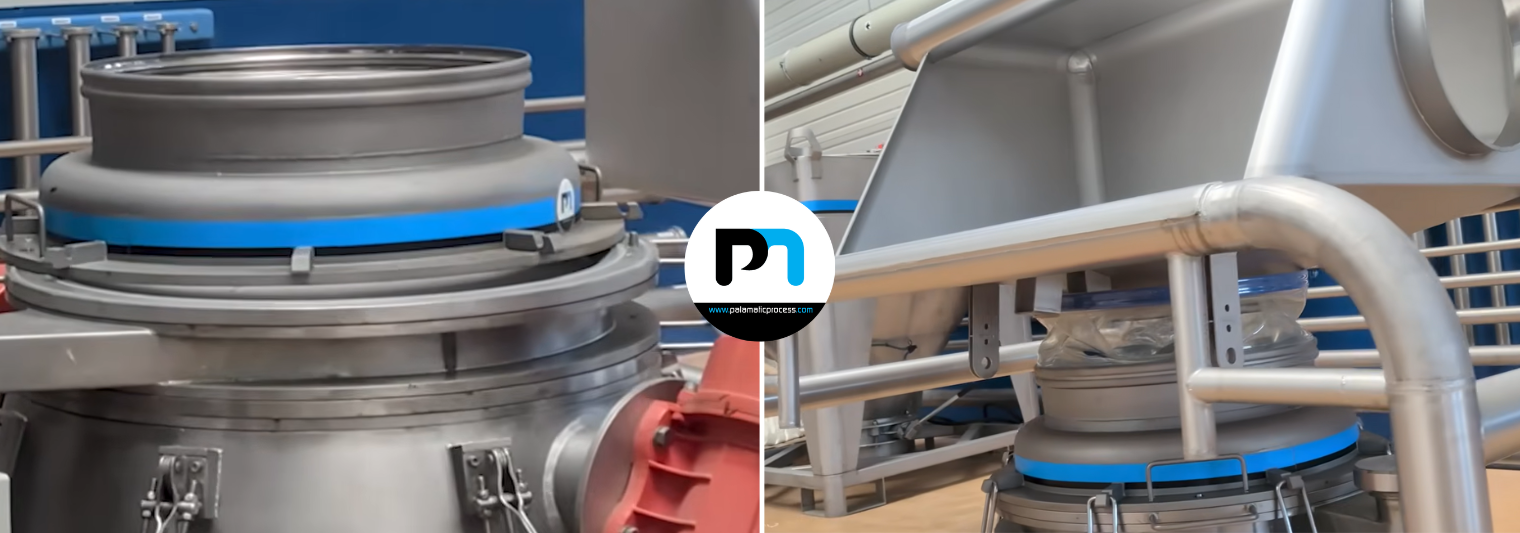

Sieve connection
Connection between the sieve and the bag emptier to reduce losses.
Sieve handle
Allows quick access to the sieve for cleaning or replacement.
Features
Technical specification
The Safetip® station stands out thanks to its cutting-edge technical features, designed to meet the most stringent requirements of the bulk industry. Its modular design allows for seamless integration into your production lines while ensuring exemplary mechanical reliability. Whether for hygiene, throughput or screening accuracy, each component is selected for its durability and performance. The following table shows the nominal specifications for adjusting the equipment to your specific operating constraints.
| THROUGHPUT | 2 to 6 bags/min |
|---|---|
| METALWORKING MATERIALS | Painted steel, 304L stainless steel, 316L stainless steel |
| SIEVE MATERIALS | 304L stainless steel, 316L stainless steel |
| MESH SIZE | 1.5 mm to 4 mm |
| SIEVE SEALING | O-ring seal |
| FLEXIBLE SLEEVE | BFM PU fitting |
| ELECTRICAL POWER (600/900) | 1 x 0.3 kW / 1 x 0.3 kW / 2 x 0.9 kW |
Technical Specifications: Safetip® 600 Series
|
MODELS |
BAG LENGTH (mm) |
SHELF HEIGHT (mm) |
SIEVE DIAMETER (mm) |
DUST REMOVAL (m³/h) |
DRAINAGE Ø (mm) |
Lo (mm) |
ACCESS DOOR |
|---|---|---|---|---|---|---|---|
|
ST-S01 600 |
650 |
900 |
600 |
N/A |
200 |
480 |
No door |
|
ST-S02 600 |
650 |
900 |
600 |
800 |
200 |
480 |
Without door |
|
ST-S03 600 |
650 |
900 |
600 |
800 |
200 |
480 |
Tempered Safety Glass |
|
ST-S03 X 600 |
650 |
900 |
600 |
500 |
200 |
480 |
Tempered Safety Glass |
|
ST-S04 600 |
650 |
900 |
600 |
800 |
200 |
480 |
Without door |
|
ST-S05 600 |
650 |
900 |
600 |
800 |
600 |
0 |
Without door |
Technical Specifications: Safetip® 900 Series
|
MODELS |
BAG LENGTH (mm) |
SHELF HEIGHT (mm) |
SIEVE DIAMETER (mm) |
DUST REMOVAL (m³/h) |
DRAIN Ø (mm) |
Lo (mm) |
ACCESS DOOR |
|---|---|---|---|---|---|---|---|
|
ST-S01 900 |
850 |
900 |
900 |
N/A |
250 |
480 |
Without door |
|
ST-S02 900 |
850 |
900 |
900 |
1000 |
250 |
480 |
Without door |
|
ST-S03 900 |
850 |
900 |
900 |
1000 |
250 |
480 |
Tempered Safety Glass |
|
ST-S03 X 900 |
850 |
900 |
900 |
500 |
250 |
480 |
Tempered Safety Glass |
|
ST-S04 900 |
850 |
900 |
900 |
1000 |
250 |
480 |
Without door |
|
ST-S05 900 |
850 |
900 |
900 |
1000 |
600 |
0 |
No door |
Options
Available options
-
Bag handler
Vacuum lifting of bags for effortless handling.
-
Integrated dust extraction system
Work in a healthy atmosphere without pollution or product loss.
-
Bag compactor
Compaction of all types of bags.
-
Lifting table
Place the bags in an ergonomic position for the user.
-
Belt conveyor
Provide buffer storage upstream of the bag emptying system.
-
Handling castor
Equipment mobility.
-
ATEX
Installation of your equipment in ATEX zones.
