BIG BAG FILLING - Confined packaging for all types of big bags

The big bag filling machines are also named big bag packing machines. Palamatic Process designs big bag filling machines for the treatment of bulk and powdery products that can be perfectly integrated upstream or downstream of existing process lines. The FlowMatic® 01 big bag filling machine has filling capacities ranging from 10 to 20 big bags per hour and only one operator is required for its operation.
This model is an effective solution for the simple packaging of bulk products.

  • Automation
    1
  • Rate
    2
  • Overall dimensions
    5







Operating procedure:
1.Positioning of the big bag on the packing station
2.Airtight fixing of the big bag filling sleeve by inflatable seal
3.Big bag filling
4.Evacuation of the big bag with a forklift truck or a pallet truc, by the handling pallet or by the handles of the big bag

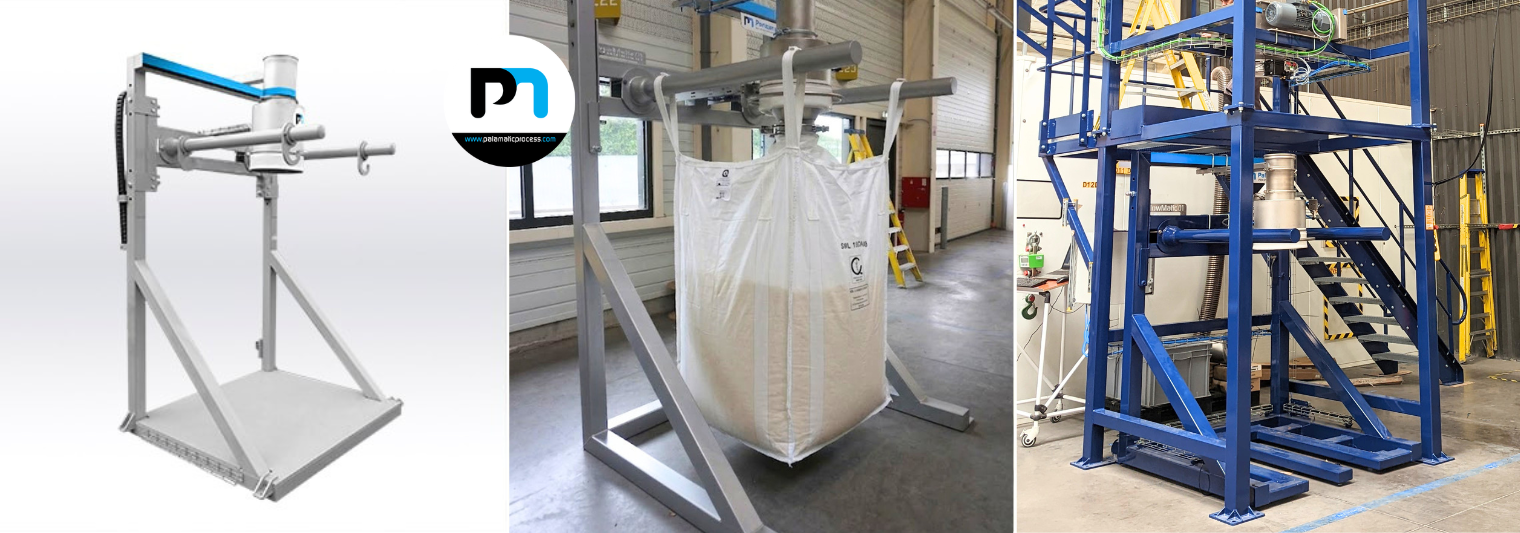

Big bag filling system - Flowmatic 01

The airtight connection of the filling sleeve with an inflatable seal offers an airtight packaging of all types of big bags. The big bag removal can be conducted with a forklift truck or a handling pallet.



Main characteristics of the filling machine:

Palamatic Process has developed a complete range of packaging stations for big bag handling (FIBC, super sack, jumbo bag, bulk bag) to meet the needs of industries. The FlowMatic®01 model is the effective solution for the simple packaging of bulk and powdery products.

Big bag filling system FlowMatic 01- Bulk powder handling

Equipment advantages

- Width adjustable forks for an optimal filling of all types of big bags
- Filling head with double casing for the degassing of the big bag during packing operation
- Height adjustment of the forks for maximal flexibility
- Removal of the big bag possible with forklift truck or pallet truck

Media

View our equipment in videos

Bulk bag filling systems - FlowMatic® 01

Big bag filling system - Flowmatic 01

Palamatic Process has developed a complete range of packaging stations for big bag handling (FIBC, super sack, jumbo bag, bulk bag) to meet the needs of industries. The FlowMatic®01 model is the effective solution for the simple packaging of bulk and powdery products.

Gamme de station remplisseuse big bag - FlowMatic

Bulk bag filling range

10 models of big bag filling systems

View our equipment in photos

Flowmatic 01 - bulk bag filler bulk materials

FlowMatic® 01 - Big bag packaging

Bulk material handling equipment for big bag filling

bulk bag charging

Double station: big bag filling

Process line for filling big bag with starch

level probe

Ultrasonic probe on bulk bag filling station

Complete processing line for the management and preparation of premixes

food application big bag filling

Big bag filling: food powder processing line

Cocoa packaging line with sieving

bulk bag conditioner bulk material palamatic process

big bag filling station

Filling with a inflatable seal ensures airtight packing of all types of big bags

powders big bag filling packing processing line

Bulk bag charger FlowMatic® 03

Combined station for packing big bags and drums for the chemical industry

bulk bag conditioner bulk materials feeding

Big bag packaging

Process filling line of barite in big bags: FlowMatic® 01

bulk bag conditioner packaging

Big bag packing Palamatic Process

Packing in big bags of white sugar and crystal sugar: big bag filling line with a capacity of 40 big bags per hour

automatic bulk bag conditioner

Big bag filling

Preparation of infant milk powder

bulk powder big bag filling

Conveyor on bulk bag filling station

Big bag filling in hygienic zone (white zone) of sugar

big bag production line

Big bag filling line

Industrial line for packing glucose in big bags - Food industry.

big bag filling

Double station: big bag filling

Iron hydroxide mixing and conditioning line

big bag and drum fillling processing line

big bag and drum filling equipment

Filling line for packing plastic materials in drums and big bags

big bag loading

Filling hopper for big bag

Process line for mixing and packing phytotherapeutic materials

bulk bag loader

Big bag packaging

Industrial line for sugar processing

auger screw conveyor big bag filling

Through screw conveyor to feed the big bag filling machine

Trough screw for feeding the big bag filling station

bulk bag filling - Flowmatic 01

Big bag packaging - FlowMatic® 01

Packing of carbon black - Chemical industry

Features

Technical specification

Rate 10 to 20 big bags/h.
Capacity 2 tons/ big bag
Manufacturing materials Painted steel, 304L stainless steel
Installed power 0.2 kW
Compressed air consumption 0.1 Nm³/h.
Dust removal rate 300 m³/h.



Finishing touches: RAL 9006, microblasted, electropolishing
Operating pressure: 6 bar
TOR input: 0
TOR output: 1
Maximum dimensions of the big bags: 1,550 (l) x 1,550 (L) x 2,400 (H) mm
U-shaped forks: enables the removal of the big bag with the forks (optional)

Equipment integrated to FLOWMATIC model 01:
- Big bag loops round hooking forks: provides easier sliding of the big bag handles.
- U-shaped forks for attaching the handles of the big bag: enables the removal of the big bag directly from the handles with a forklift truck (no use of pallets).
- Support structure: the structure is manually height adjustable so it can be adapted to any type of big bag.
- Width adjustment: the center distance of the forks is width adjustable to optimize the filling operation but provides an increased stability of the flexible container on the pallet.
- Inflatable seal: The inflatable seal ensures an airtight connection between the filling head and the big bag during its filling.
- Filling head: the filling head is designed in a double casing for volume balancing. The charged air is evacuated through the degassing line which can be connected to the dedusting network.

specification flowmatic01 big bag filling palamatic process





1. Round forks

2. Support structure

3. Width adjustment

4. Inflatable seal

5. Filling head

Options

Available options

  • Big bag filling system - Powder handling - Palamatic Process
    Big bag filling system - Powder handling - Palamatic Process

    Connection under sleeve

    This equipment ensures a completely airtight connection for the big bag. The diameter is defined depending on the big bag or of the tightening ring.



  • Big bag filling system - Powder handling - Palamatic Process
    Big bag filling system - Powder handling - Palamatic Process

    Conveyor

    The big bag placed upon the pallet is evacuated by a motorized roller conveyor, thus optimizing production.

  • One loop big bag filling system - Powder handling - Palamatic Process
    One loop big bag filling system - Powder handling - Palamatic Process

    Hook - Handle

    The equipment can be designed to accommodate big bags 1 handle big bags. A specific maintenance hook enables the positioning of the handle. This hook is set up on the height adjusting deck, thus keeping the system’s flexibility.

    A curved feeding tube completes the system allowing to preserve a straight base on the big bag, ensuring an optimal filling.

  • Big bag filling system - Powder handling - Palamatic Process
    Big bag filling system - Powder handling - Palamatic Process

    Automatic big bag release

    Four articulated hooks are installed on the big bag reception deck. The automaton activated pneumatic cylinder controls the tilting of the hook at the end of the dosing process.

  • Big bag filling system - Powder handling - Pallet stacker
    Big bag filling system - Powder handling - Pallet stacker

    Pallet unstacker

    In order to automate the big bag filling station, we propose the installation of an automatic pallet unstacker.
    The stacked pallets are stored in the warehouse, then feed one by one the big bag packing machine via a motorized conveyor.

  • Big bag filling system - Powder handling - Load cells
    Big bag filling system - Powder handling - Load cells

    Load cells

    We incorporate load cells and an operator interface which ensure that the big bags are packed very accurately.
    Our bagging systems ensure you a commercial weighing. The protected integration of the load cells ensures an excellent service life of the equipment.

    Additional options specific to big bag weighing such as communication in profibus mode or printing a weighing ticket can be integrated.

    Our weighing partners are: Precia Molen, Sartorius, Master-K, Mettler Toledo, Philips, Siemens, Vishay Nobel.

  • Big bag filling system - Powder handling - Palamatic Process
    Big bag filling system - Powder handling - Palamatic Process

    Grounding clamp

    Mass braids equip the entire station. A quick connection point allows the grounding of the big bags, thus creating an equipotential connection of the unit.

  • Big bag filling system - Platform - Palamatic Process
    Big bag filling system - Platform - Palamatic Process

    Platform

    It facilitates access to the upper part of the big bag filling machine to allow the closing of the bagging head of the flexible container.

  • Big bag filling system - Powder handling - Palamatic Process
    Big bag filling system - Powder handling - Palamatic Process

    Internal bag welding machine

    Once the big bag is filled, it is evacuated to the cuff closing station. A thermo-welding system allows the big bag to be sealed tightly by the action of heated jaws on the inner bag. Welding technologies can be adapted according to the characteristics of the big bag (aluminum inner bag).

  • Big bag filling system vibrating time
    Big bag filling system vibrating time

    Vibrating table

    In order to deaerate the product, a vibrating table activated by two electric motors optimizes the filling of the big bag.
