Big bag filling system - Bulk powder handling
Description

FlowMatic® 07 big bag filling equipment - Mobile packaging machine for connection to truck or silo loading spout

ATEX certification Palamatic Process

The FlowMatic® 07 big bag filling mobile station is the best solution for loading under multiple silos or hygienic processes requiring a complete wash down of the material loading area.The mobile FlowMatic® 07 big bag filling station is equipped with the following functions: unloading cone dock, filling head, forks with adjustable width, inflatable containment seal, support structure, vibrating table, load cells, handling frames, stabilizer and a removeable access platform.



  • Automation
    3
  • Rate
    3
  • Overall dimensions
    5

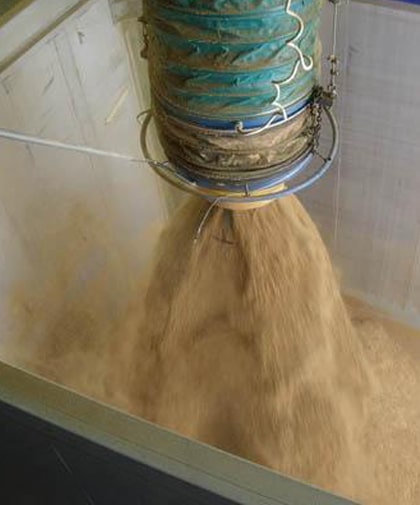

Chargement camion FlowMatic07

Palamatic Process has developed a full range of bulk bag, FIBC, super sack, jumbo bag and big bag filling stations to meet the different needs of various powder processing industries. The FlowMatic® 07 model represents the efficient and flexible FIBC filling equipment solution for simple packaging of bulk products under multiple supply points. It is particularly suitable for loading under silos.

Big bag filling system Flowmatic 07 dimensions - Bulk powder handling

Equipment advantages

- Load cells intended for dosing and commercial weighing

- Connection under truck loading spout

- Docking cone

- Station mobility (wheels, fork truck)

Media

View our equipment in videos

Station de remplissage big bag - Flowmatic 07 en 3D

Station de remplissage big bag - Flowmatic 07 en 3D

FlowMatic® 07 big bag filling machineMobile packaging machine for connection to truck or silo loading handle

Gamme de stations de remplissage big bag - FlowMatic

Bulk bag filling range

Station de remplissage big bag - Flowmatic 07

Bulk bag filling systems - FlowMatic® 07

View our equipment in photos

automatic bulk bag conditioner handling line

Big bag filling

The mobility of the big bag filling station is ensured by special forks to allow it to be moved by the forklift truck.

flowmatic 07 bulk bag filler

Access platform to big bag filling

The access platform allows the operator to easily access the big bag packing station.

ergonomic access flexible connector

Access platform to big bag filling

The disconnectable access platform permits the operator to access as close as possible to the big bag cuff.

FIBC filling system - Bulk powder handling

Bulk bag filling

The FlowMatic® 07 big bag conditioner is suitable for hygienic processes requiring a complete cleaning of the station.

FIBC filling system - Bulk powder handling

Jumbo bag filling

Double big bag filling station with docking cones.

FIBC filling system - Inflatable seal

Big bag packing

U-shaped forks on a conditioning station for big bags of aggregates.

bulk handling big bag filling bulk materials

Conveyor on bulk bag filling

Belt conveyor on a packing line for big bags of sugar.

bulk big bag filling

Bulk bag filling Palamatic Process

Filling station for big bags of plaster.

palamatic process bulk bag conditioner

Bulk bag conditioner

Big bag filling for spice packing.

FIBC filling system - Mobile station

Big bag filling system - Mobile station

Big bag filling station on a bulk powder conditioning line in the petrochemical sector.

automatic bulk bag conditioner processing line

Automatic bulk bag conditioner

Clamping ring on a packing line for big bags of sugar.

fill big bag flowmatic05 vh bulk handling

Big bag conditioner FlowMatic® 05-HC

Equipment for filling big bags with hydraulic cylinder.

big bag production line

Big bag production line

For loading big bags with resins and polymers.

fill big bag flowmatic03 bulk materials

Big bag filling FlowMatic® 03

FlowMatic® 03 big bag filling station for dosing and flexibility in terms of the characteristics of the bulk materials and powders processed.

fill big bag flowmatic03 powders

Big bag filling station FlowMatic® 03

Storage container unloader for the packing of metal powders in big bags.

automatic process line big bag filling

Automatic process line big bag filling

Big bag filling station for the secure packing of your raw materials.

bulk bag conditioner plant

Load cells on bulk bag filling charger

The load cells positioned under the vibrating table are designed for bulk material dosing and commercial weighing.

bulk bag conditioner bulk materials handling

Bulk bag conditioner

Cement packaging in big bags under truck loading sleeve.

big bag filling bulk palamatic process

Drum & big bag filling for bulk materials

Combined station for filling big bags and industrial drums.

control cabinet

Control cabinet

Pal'Touch® technology is ergonomic and makes your entire production process more reliable.

big bag filling raw materials

Big bag packing

Big bag filling station with pre-dosing hopper.

truck loading spout big bag filling station

Truck loading spout

The truck loading sleeve is used for continuous loading of bulk materials with high throughputs.

truck loading spout mechanical conveying screw

Screw conveyor

Conveyor screw for feeding big bags filling station and truck filling via a loading sleeve.

truck loading spout big bag filling

Truck loading spout

Truck loading sleeves under storage silo for filling big bags with mobile structures.

big bag loading

Big bag loading

The charger for big bags of processed corn seeds is provided with a loading hopper.

bulk bag packing bulk processing palamatic process flowmatic06

Bulk bag packing - FlowMatic® 06

This model represents a complete solution for big bag filling in net weighing.

bulk handling big bag filling with platform

big bag filling with platform

Mobile big bag loading station on handling wheels.

big bag filling raw material packaging line

Big bag filler

The big bag conditioner is provided with an inflation fan for preforming the big bag.

big bag filling on wheels

Bulk bag filling mobile station

The big bag filling station is mobile and therefore permits the packing of big bags under separate feeding points or truck loading spouts.

bulk bag conditioner under truck loading spout

Filling head

The big bag conditioner is equipped with a docking cone.

vibrating table on big bag filling station

Vibrating table on bulk bag charger

The vibrating table ensures that the powder is deaerated and thus a stable big bag.

big bag filling flowmatic09

Silo discharging

The bulk bag charging station is fed through a truck loading spout under a storage silo.

big bag filling flowmatic07

Bulk bag filling mobile station

The big bag conditioning station can be moved to the forklift truck for positioning under the truck loading spout.


flowmatic 07 bulk bag filler

Big bag filling - FlowMatic® 07

The operator platform facilitates access to the upper part of the filling machine to close the big bag filling spout.

flowmatic 07 big bag bulk filling bulk materials

Big bag packing - FlowMatic® 07

The FlowMatic® 07 big bag filling station is mobile; it integrates handling casings allowing the unit to be moved by a forklift truck or pallet truck.

flowmatic 07 big bag bulk filling

Big bag packing - FlowMatic® 07

Our mobile big bag chargers are used to pack big bags under separate feeding points or truck filling spout.

fill big bag inflatable seal

Inflatable seal

A clamping ring is positioned around the inflatable seal, it allows the connection of different diameters of the big bag cuff.

fill big bag powder treatment

Bulk bag filling - FlowMatic® 07

This FlowMatic® 07 big bag filling station is fitted with round forks.

Features

Technical specification

Rate 20 to 30 big bags/h.
Capacity 2 tons/big bag
Manufacturing materials Painted steel, 304L stainless steel
Installed power 1.7 kW
Compressed air consumption 0.9 Nm³/h.
Dust removal rate 300m³/h.

Equipment integrated into the FlowMatic® 07 model:

- Docking cone,

- Filling head

- Width adjustable forks

- Inflating containment seal

- Support structure

- Vibrating table

- Load cells

- Handling frame

- Stabilizer

- Disconnectable access platform.

Options

Available options

  • FIBC filling system - Covering
    FIBC filling system - Covering

    Cover

    At the output of the big bag bagging station, an automatic wrapper ensures the final containment of the big bag on its pallet.
    The big bag is supplied by a motorized conveyor.

  • FIBC filling system - Automatic release
    FIBC filling system - Automatic release

    Automatic release

    Four articulated hooks are located on the big bag deck. The pneumatic cylinder, operated by the automaton, controls the tilting of the hook at the end of the dosing process

  • FIBC filling system - Grounding clamp
    FIBC filling system - Grounding clamp

    Grounding clamp

    Mass braids equip the entire station. A quick connection point allows the grounding the big bags thus making an equipotential bonding of the assembly.

Case studies
  • Carbonate packaging

    Processed powders: white minerals, talc and carbonates - Carbonate packing - International manufacturer of concrete fillers. The objective was to supply the site with a system that would allow...
  • Cement packaging

    Processed powder: cement - Cement packing - Big bag filling system FlowMatic® 07 that can be connected instead of a truck tank, under a truck loading handle
