EasyAccess Innovation: Maintenance in record time
The Safetip® easyacces ST-EA is a hygienic manual emptying station designed to incorporate a vibrating sieve with an interchangeable, easy-to-clean grid. It combines cleanliness, ergonomics and safety for industry, ensuring that no foreign bodies enter the production lines once the raw materials have been added.
The modern design of the bag emptying hood incorporates a swivel joint to allow operators easy access to the sieve grid. Easy access to the sieve cloth allows for cleaning between each production batch.
The hood is hinged on a hinge system with a gas cylinder to assist the operator in handling. The emptying cabin can therefore be connected and disconnected effortlessly, and a hook system secures and locks the upper and lower positions.
The connection between the hood and the screen is sealed by means of a flexible seal called a tulip seal. The "dropped edge" of the cabin fits into the tulip seal, providing containment and preventing the transmission of vibrations between the vibrating screen and the emptying cabin.
|
Model |
ST 600 |
ST 900 |
|---|---|---|
|
Opening width |
800 mm |
1000 mm |
|
Bag length |
650 mm |
850 mm |
|
Sieve diameter |
600 mm |
900 mm |
-
Hygiene4
Four cabin designs:
In order to offer the best configuration for confining the emptying phase and minimising dust emissions, Palamatic offers four designs in the Safetip® range.
- 1 - Safetip® EasyAccess ST-EA-01 model
The economical single booth allows bags to be placed on a sturdy fixed shelf and has a peripheral rim to channel your powders during the emptying phase. - 2 - Safetip® EasyAccess ST-EA-02 model
Complete hood that can be connected to your central vacuum system or with integrated filtration. This solution is widely used in the food industry where large quantities are introduced. The containment hood is made of 304 or 316L stainless steel. Gas cylinders located between the hood and the frame compensate for the weight of the assembly. - 3 - Safetip® EasyAccess ST-EA-03 model
The EA-03 emptying cabinet provides optimal containment for connection to a dust collector or integration of a built-in filtration system, and a door that ensures non-contamination once the loading phase is complete. The door is hinged on a gas cylinder, as is the entire hood opposite the vibrating base of the emptying station. - 4 - Safetip® EasyAccess ST-EA-03X model
The 03X model offers total containment through the use of gloves on the glass door of the emptying cabin. The operator ensures hygienic loading of ingredients through the gloves, which completely isolate them from the powder. The process feed is particularly secure from any foreign bodies thanks to the combined containment and screening safety features.
| Range | EasyAccess ST-EA-01 | EasyAccess ST-EA-02 | EasyAccess ST-EA-03 | EasyAccess ST-EA-03X | ||||
|---|---|---|---|---|---|---|---|---|
| Overview | ||||||||
| Design/ Use |
Open version. Anti-overflow edges | Closed hood without door for connection to dust extraction system | Closed enclosure. Glass door hinged on gas struts | Upgrade of EA-03 with glove box | ||||
| Shelf height from floor (mm) | 900 | |||||||
| Drain flange height from ground (mm) | 480 | |||||||
| Tempered glass access door | ✓ | ✓ | ||||||
| Glove compartment | ✓ | |||||||
| Model | 600 | 900 | 600 | 900 | 600 | 900 | 600 | 900 |
| Dust removal flow rate (m³/h) | / | 800 | 1000 | 800 | 1000 | 500 | ||
| Ø Product output (mm) | 200 | 250 | 200 | 250 | 200 | 250 | 200 | 250 |
Simplified cleaning procedure
- Lift the hopper using the jacks.
- Remove the seal by hand (O-ring type connection).
- Remove the upper vibrating base using the fixing clamps.
- Replace/clean the grid and screen.
- Refit the cover without tools.
- Refit the seal without tools.
- Lower the hopper.
LOAD YOUR POWDERS!
Equipment advantages
- Tool-free cleaning, quick and hygienic between each batch.
- Integrated Ø600 mm sieve for effective protection against impurities.
- 4 levels of containment according to your process requirements.
- Assisted hopper and ergonomic workstation for optimal operator comfort.
- Adjustable settings for each powder and each mesh size.
Media
View our equipment in videos
Discover our range of bag emptying machines with integrated Safetip® sieve
Discover our range of bag emptying machines with integrated Safetip® sieve
View our equipment in photos

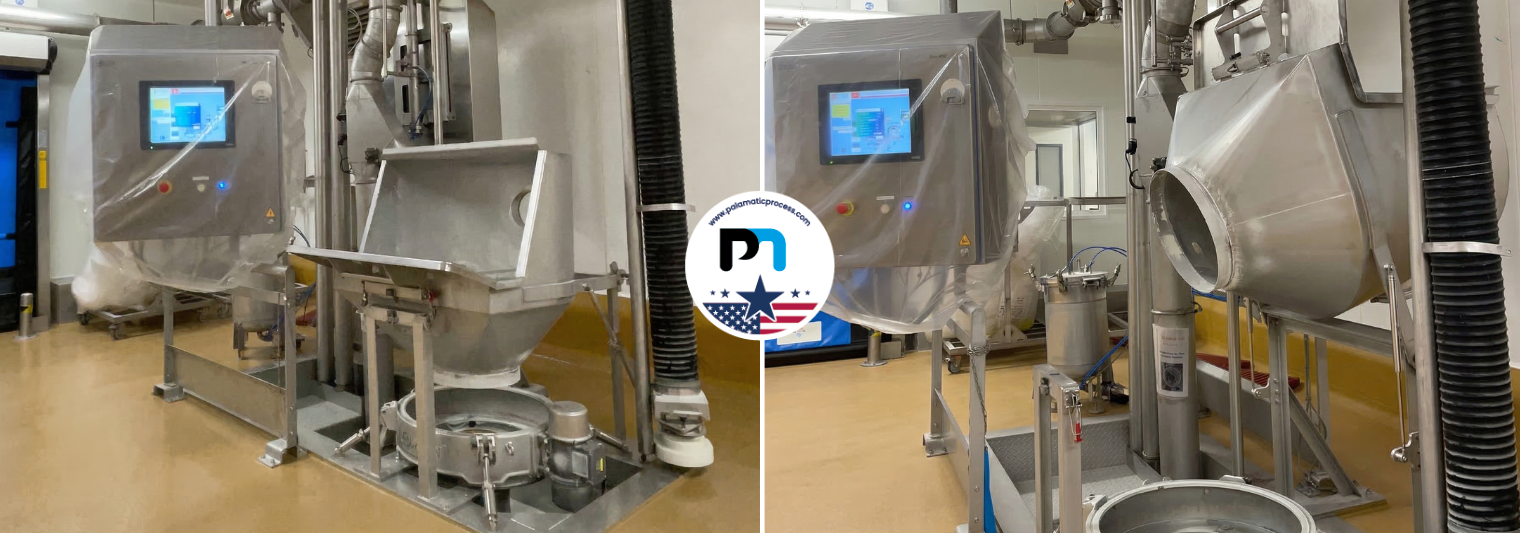

Safetip EasyAccess in neutral position
The Safetip EasyAccess is ready for use.
Safetip EasyAcces en position relevé
Safetip EasyAccess in raised position for quicker access to the screen
Safetip-EasyAcces
Safetip EasyAcces en mode fonctionnel.
Features
Technical specification
- Food safety: Integrated 600 mm diameter sieve to ensure the loading throughput of a production operator. The sieve meshes are interchangeable and easy to clean thanks to easy access. All impurities, foreign bodies or torn bags are stopped by the vibrating sieve cloth. Safetip® is your first line of defence against impurities.
- Flexible adjustment: Amplitude and intensity of the vibrating screen can be adjusted according to the flowability of the product and the size of the integrated mesh. Adjustment is carried out by adjusting the unbalanced weights.
- Optimal hygiene: Several finishes are available: mirror polish, rounded corners, water-compatible cleaning. Design with no compromise on retention areas.
- Easy handling: Sieve and grid removable without tools, hopper on gas-assisted pivot to reduce effort, ensuring speed and ergonomics for production operators.
- Simplified cleaning: Easy removal of the screen and grid without tools, greatly facilitating access for cleaning. Tulip seal connecting the hood and vibrating base can be removed without tools thanks to O-ring technology.
| FLOW RATE | 2 to 6 bags/min |
|---|---|
| BOILERMAKING MATERIALS | 304L stainless steel, 316L stainless steel |
| SIEVE MATERIALS | 304L stainless steel, 316L stainless steel |
| MESH SIZE | 1.5 mm to 4 mm |
| SIEVE SEAL | O-ring seal |
| TULIP SEAL | Silicone tulip seal |
| ELECTRICAL POWER (600/900 VIBRATING SCREEN) | 1 x 0.3 kW / 2 x 0.9 kW |
| EXTERIOR FINISH | Microblasted, Sublimotion |
| INTERIOR FINISH | Ra 0.8, Polimiroir |
Technical Specifications: Safetip® Series - EasyAccess 600
| MODELS | LENGTH OF BAGS TO BE PROCESSED (mm) | FLOOR-TO-SHELF HEIGHT (mm) | SIEVE DIAMETER (mm) | DUST REMOVAL FLOW RATE (m3/h) | Ø DRAIN (mm) | FLOOR HEIGHT OF DRAIN FLANGE (mm) | ACCESS DOOR |
|---|---|---|---|---|---|---|---|
| ST-EA 01 | 650 | 900 | 600 | NA | 200 | 480 | without door |
| ST-EA 02 | 650 | 900 | 600 | 800 | 200 | 480 | without door |
| ST-EA 03 | 650 | 900 | 600 | 800 | 200 | 480 | Tempered safety glass |
| ST-S03 X | 650 | 900 | 600 | 500 | 200 | 480 | Tempered Safety Glass |
Technical Specifications: Safetip® Series - EasyAccess 900
| MODELS | LENGTH OF BAGS TO BE PROCESSED (mm) | FLOOR-TO-SHELF HEIGHT (mm) | SIEVE DIAMETER (mm) | DUST REMOVAL FLOW RATE (m3/h) | Ø DRAIN (mm) | FLOOR HEIGHT OF DRAIN FLANGE (mm) | ACCESS DOOR |
|---|---|---|---|---|---|---|---|
| ST-EA 01 | 800 | 900 | 900 | NA | 200 | 480 | without door |
| ST-EA 02 | 800 | 900 | 900 | 800 | 200 | 480 | without door |
| ST-EA 03 | 800 | 900 | 900 | 800 | 200 | 480 | Tempered safety glass |
| ST-S03 X | 800 | 900 | 900 | 500 | 200 | 480 | Tempered Safety Glass |
Options
Available options
-
Bag handler
Vacuum lifting of bags for effortless handling.
-
Integrated dust extraction system
Work in a healthy atmosphere without pollution or product loss.
-
Bag compactor
Compaction of all types of bags.
-
Lifting table
Place the bags in an ergonomic position for the user.
-
Belt conveyor
Provide buffer storage upstream of the bag emptying system.
-
Handling roller
Equipment mobility.
-
ATEX
Installation of your equipment in ATEX zones.
