    FlowMatic04 H

    Bulk bag filler - Hygienic packing without pallets and automatic gross weighting

    The FlowMatic® 04 H bulk bag filling equipment makes it possible to fill big bags in a critical area (white zone) for industrial companies filling bulk materials with high hygienic value. Manufacturers using the FlowMatic® 04 H are mainly manufacturers of dairy products or food supplements. The objective of this packaging line is to avoid any wooden pallets in the product area. However, at the end of the packaging line, the super sack is placed on its wooden pallet via a docking system installed outside the filling area.

    The FlowMatic® 04 H filling machine integrates all the necessary solutions for the automatic packaging of bulk bags, namely: dosing unit, filling tube with inflatable containment seal, big bag shaping system, product densification by vibrating table, dust removal, weighing in legal metrology and bulk bag conveying and palletizing systems.
    The palletization of the bulk bag is carried out by a two-level conveyor: a belt conveyor for the bulk bag and a roller conveyor for the pallet. The stacked and synchronised conveyors ensure that the bulk bag is placed on the pallet outside the packing area. Beforehand, the pallet is lined with an interlayer.

    Usually, these hygienic packaging lines integrate magnetic detectors and samplers.

    For industrials requiring even more stringent hygiene constraints, PALAMATIC PROCESS has developed a FlowMatic® 10 bulk bag filling system that ensures pallet-free filling and handling of the bulk bag by a suspended system that avoids any ground equipment.

    Mode opératoire Flowmatic 04 H

    Operating mode:

    1. Placing the bulk bag on the station via the rotating head
    2. Sealed fastening of the spout by inflatable seal
    3. Tensioning of the bulk bag by pneumatic jack
    4. Inflating the bulk bag for preforming
    5. Switching from the inflation system to the dust collector
    6. Start filling high flow rate
    7. Vibration of the densification table with intermittent operation
    8. Weighing management with a low speed shift to adjust the dosage
    9. End of filling: descent of the filling head, deflation of the seal and automatic unhooking of the bulk bag loops
    10. Closing the bulk bag by sealing the bag
    11. Automatic removal of the bulk bag via the hygienic belt conveyor to the pallet docking area
    12. Placing a layer pad on the wooden pallet or removing a placemat (operation carried out in the storage area)
    13. Placing the pallet via the roller conveyor under the bulk bag conveyor belt
    14. Synchronisation of the belt and roller conveyors for docking the bulk bag on its wooden pallet. The bulk bag is deposited on the pallet by the simultaneous advance of the conveyors.
    15. Film packaging machine, bulk bag and pallet wrapping machine (optional).


    Pallet dockingo, FlowMatic® 04 H



    • Automation
    Partager la page

    View our equipment in photos

    FlowMatic 04 H Palamatic Process

    FlowMatic® 04 H Palamatic Process

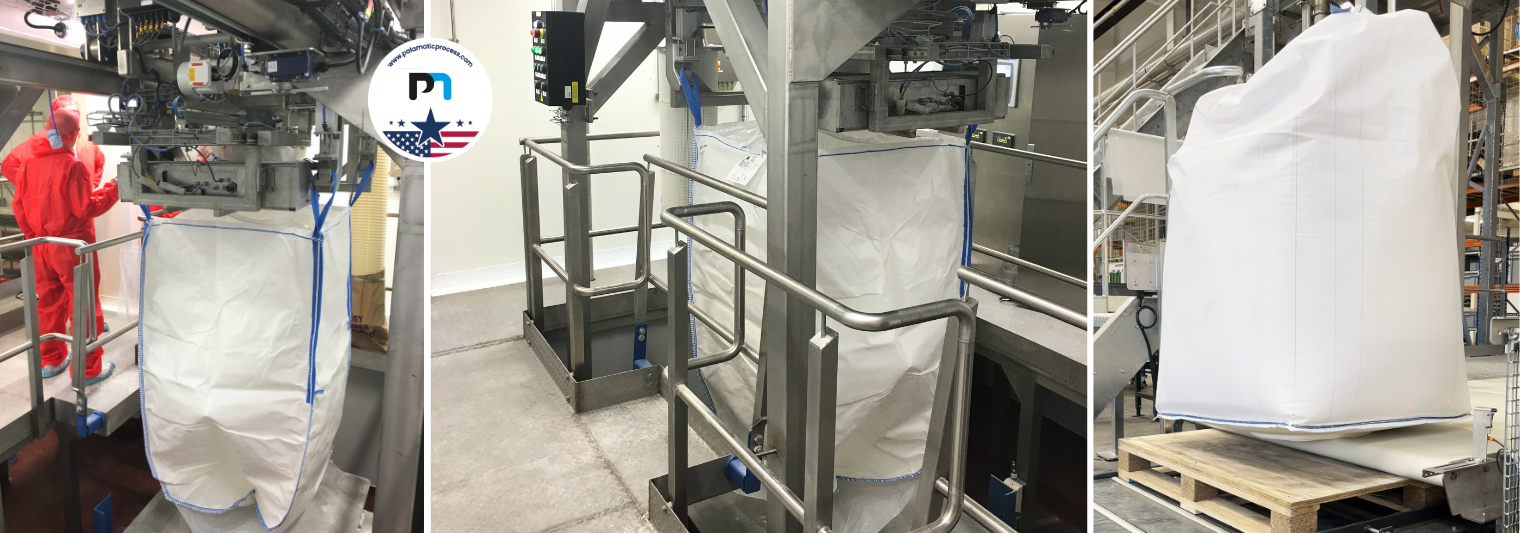

    FlowMatic® 04 H bulk bag packing station being installed before the packing cabin is set up. Bulk bag handling is ensured by a belt conveyor.

    Bulk bag conditioner - Containment

    Bulk bag output area

    An special area (grey zone) closed by two hermetic doors provides a link between the two zones and avoids the introduction of pallets in sensitive areas.

    Belt conveyor - Powder and bulk handling

    Belt conveyor

    Belt conveyor for handling filled bulk bags without pallets and in hygienic area (called "white zone" or "red zone").

    Big bag filling system - Bulk powder handling

    Big bag packing line

    Once packed, the bulk bag is placed on the pallet and evacuated by a motorized roller conveyor, thus optimizing the rate of the bulk bag packing line.

    Technical specification

    Rate 20 to 30 bulk bags/h.
    Capacity 2 tons/bulk bag
    Manufacturing materials Painted steel, 304L stainless steel
    Installed power 8.7 kW
    Compressed air consumption 6.8 Nm³/h.
    Dust removal rate 300 m³/h.
    Conveyor for pallets Rollers
    Conveyor for bulk bags  Belt


    Equipment integrated in the FlowMatic® 04 H model:

    White zone:

    - Filling head
    - Weighing frame
    - Bulk bag liner welding system
    - Belt conveyor

    Grey area:

    - SAS bulk bag extraction by sliding door and quick lift door with conveyor belt

    Storage area:

    - Unstacker
    - Placemat / divider removal on pallet
    - Bulk bag and pallet docking area
    - Buffer storage area for bulk bags packed and placed on wooden pallets

    Available options

    • Big bag filling system - Powder process
      Big bag filling system - Powder process

      Mat laying

      A mat laying station is located between the pallet unstacker and the big bag filler. It allows the automatic placement of a mat (cardboard or PE film) on the empty pallet, before the big bag filling operation. This position is an essential complement for a maximum containment of the big bag meeting the quality standard of many industries.

    • Bulk bag conditioner - Pre-inflation fan
      Bulk bag conditioner - Pre-inflation fan

      Pre-inflation fan

      The pre-inflation of the big bag ensures the shaping of the bag thus allowing a packaging without retention pocket.
      A protective filter can be implanted to ensure the inflation of the big bag with healthy air.

    • Bulk bag conditioner - Unstacker
      Bulk bag conditioner - Unstacker

      Pallet unstacker

      In order to automate the big bag filling station, we propose the implementation of an automatic pallet unstacker.
      The stacked pallets are stored in the workshop, then supply one by one the packaging station via a motorized conveyor.

    • Bulk bag conditioner - Grounding clamp
      Bulk bag conditioner - Grounding clamp

      Grounding clamp

      Mass braids equip the entire station. A quick connection point allows the grounding the big bags thus achieving an equipotential bonding of the assembly.
