Centrifugal sieve on pneumatic conveying line IRS

  • Essai
  • Plan d'accès
centrifugal sieve on pneumatic conveying line
Description

Centrifugal sieve on pneumatic conveying line IRS
To control and protect your production line

The centrifugal sieve design is totally enclosed and resistant to the pressure of the pneumatic conveying.
The setting up of the screener on a conveying line involves very low pressure loss.
The horizontal centrifugal sifter construction can be mounted at floor level and insures an easy access to the equipment.

Schematic diagram IRS 275:

Centrifugal screener on pneumatic conveying Palamatic Process
  • Rate
    5
  • Hygiene
    4
  • Ease of integration
    4

Equipment advantages

- Access door

- Easy disassembly

- Compact design

- Feeding screw under the inlet channel

Media

View our equipment in photos

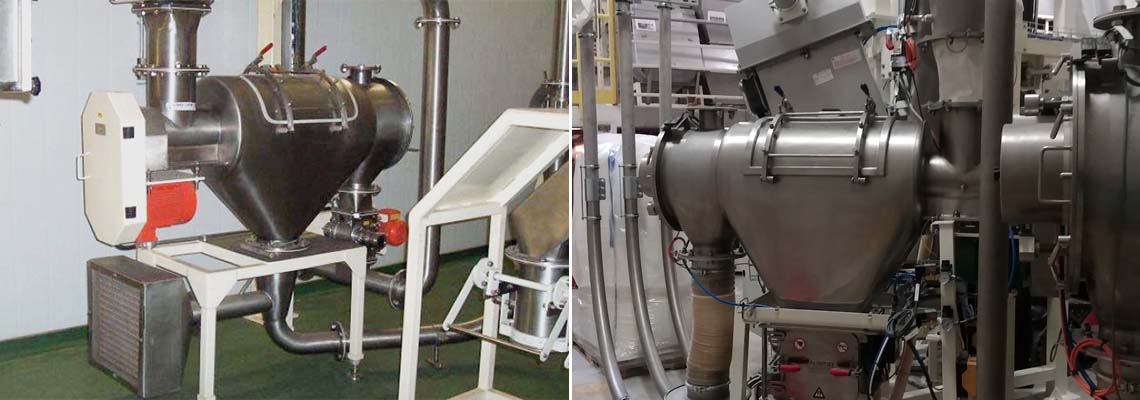

centrifugal sieve on conveying line

Centrifugal sifter on pneumatic conveying line

The centrifugal sieve is the perfect solution for continuous screening of dry or bulk materials.

centrifugal sieve on conveying line

Pneumatic conveying processing line

The centrifugal sieve can process even powders and bulk materials that form balls or clump together because it breaks the clumps during sieving.

centrifugal sieve on conveying line

Manufacturing filling line with centrifugal sifter

Palamatic Process centrifugal screeners are designed for installations with gravity or pneumatic conveying feeding.

internal view centrifugal sieve

Internal view of the centrifugal sifter

The centrifugal force of the rotating blades forces the powder grains through the mesh of the sieve

on line centrifugal sieve

Pharmaceutical powder sieving

Centrifugal sieve on a bulk material packing line in the pharmaceutical sector.

on line centrifugal sieve on pneumatic conveying

Food bulk material centrifugal sifting on pneumatic conveying line

Centrifugal screen on an industrial production line equipped with hopper venting filter.

centrifugal sieve on conveying line bulk handling

Animal feed product centrifugal sifter

The centrifugal sieve is operated by a pneumatic conveying system for in-line use.

centrifugal sieve on pneumatic conveying

Centrifugal sifter on pneumatic conveying line

A hopper venting filter is installed on the industrial centrifugal screen.

centrifugal screener on pneumatic conveying linge palamatic process

Spices centrifugal sieving on pneumatic conveying line

A tubular conveying screw feeds the centrifugal screener.

centrifugal sieve on conveying line

Spices packing with centrifugal sieve

Centrifugal sieve on a spice packing line in storage IBC containers.

powder handling centrifugal sifter

Outlet flange for oversized particules

For the continuous collection of oversized particules. It is used to remove particles with larger grain sizes.

Features

Technical specification

  Capacity in t./h. depending on the size of the mesh in mm
  0.6 0.8 1 1.6 2 3
IRS 275 6 9 11 14 16 19



Usable Ø  275 mm
Height 1,835 mm
Weight 680 kg
Electric power consumption 4 kW
Options

Available options

  • dismantling handle centrifugal sieve
    dismantling handle centrifugal sieve

    Dismantling device on centrifugal sifter

  • stainless steel manufacturing spices centrifugal sieve
    stainless steel manufacturing spices centrifugal sieve

    Steel and stainless steel manufacturing
