Description
Slide valve - Gravitational material extraction and dosing
The gate valves to the sectioning of a bulk material, through the central shovel which intersects the fluid passage and provides complete sealing.
Steel or polymer construction with square, round or rectangular passage cross-section.
The valves are mounted on the outlets of hoppers, tanks, silos, mechanical conveyor, and on loading bellow inlets. Slide valves are suitable for virtually all industrial sectors dealing with powder handling including the food industry.
-
Rate5
-
Capacity2

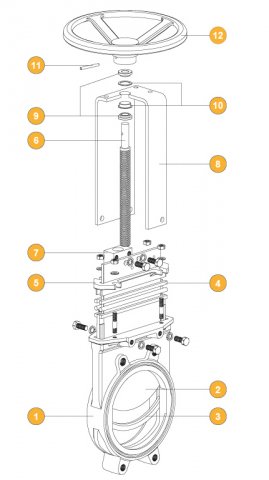

- Body
- Spade
- Rubber seal
- Trim
- Cable gland
- Stem
- Drive nut
- Arch
- Brass bush
- Nylon bush and washer
- Pin
- Hand wheel
Equipment advantages
- Valve frame and blade in carbon or stainless steel
- Small number of components
- Powder-coated
- Sizes up to 1000 mm
- Quick maintenance and replacement of the scraper
- Equipped for manual, electropneumatic or gear motor actuator
Media
View our equipment in photos
Feeding for drums and big bags filling system
Knife gate valves are used for gravity extraction and dosing.
Slide gate valve
Secure sealing without any additional measures thanks to the dust seals integrated in the polymer coating.
Rubber seal
The slide valve cuts off a bulk material through the central gate, which cuts off the flow of fluid and provides a complete seal.
Slide gate valve
Secure sealing without any additional measures thanks to the dust seals integrated in the polymer coating.
Manual slide valve
Bidirectional manual valve for high concentration charged fluids and powders.
Unidirectional pneumatic valve for liquids and solids.
Pneumatic slide valve
The slide valves are controlled by an PLC according to the weighing scale information.
Manual slide valve
This slide valve is mainly used for the following applications: water treatment, paper paste, bulk materials and raw ingredients handling...
Dosing equipment - Slide valve
For gravity extraction and dosing.
Pneumatic slide valve
Our slide valves are mainly used in the chemical, food, energy and water treatment sectors.
Pneumatic conveying system
Integrated equipment:
- Manual slide valve
Slide valve for feeding screw conveyor
This pneumatically operated valve isolates the hopper after the big bag has been emptied.
Features
Technical specification
3 types of slide valves :
- Square valve : from 120 x 120 mm to 370 x 370 mm
- Round valve : from Ø 150 to Ø 400 mm
- Rectangular valve : from 204 x 119 mm to 428 x 269 mm
This manually valve can stop the flow of the product at any time.
The valve, which is entirely manufactured in carbon steel, ensures safe interception, excellent durability and is the ideal equipment for heavy-duty applications. The slide valve is equipped with two replaceable seals.
Implementation
Most common implantations :
- Under a silo with the manual actuator version to ensure maintenance phases
- With a pneumatic actuator for a automatic filling with dosing of trucks, hoppers
- On a reactor to ensure pressure isolation, protection, security, steam rising
- On the output of a coveying screw to avoid product fall
| Diameter | DN 80 - DN 800 |
|---|---|
| Flanges finishes | EN 1092 PN 10 |
| Sealing | ISO 5208, classe A |
| Temperature | Maximum 180° |
| Manufacturing | Stainless steel 304L & 316L |
| Actuator | Hand wheel, ratchet lever, chain wheel, manual wheel reductor, pneumatic cylinder, electric servomotor, hydraulic cylinder |
| Pressure | 10 bars (DN 80 - DN 350) / 6 bars (DN 400 - DN 600) / 4 bars (DN 700 - DN 800) |
Options
Available options
-
Gear motor actuator
-
Electropneumatic actuator
-
Valve frame and flade in carbon or stainless steel
-
FDA
Food industry version available
-
Manual actuator
1. Manual actuator
2. Manual actuatorma
