FlowMatic®01 Bulk bag filling system

Products

Description

Bulk bag filler - Confined packaging for all types of bulk bags

Palamatic Process Inc. designs bulk bag / FIBC / super sack filling and packing equipment for the loading and storing of bulk solids and powder materials. Our filling stations can be seamlessly integrated upstream or downstream of existing process lines. The FlowMatic® 01 bulk bag filling system has a loading capacity ranging from 10 to 20 bulk bags per hour and requires only one person for operation.

This model is a cost-effective solution for simple bulk solid packaging processes.

Automation
Rate
Overall dimensions

Operating procedure:
1. Position the bulk bag on the packing station hooks
2. Position spout around the inflatable seal for dust tight loading
3. Fill the bulk bag container
4. Deflate seal and remove via fork lift or pallet truck

The inflatable seal offers dust tight filling around the spout of the bulk bag and works with various bulk solids operations. The bulk bag (FIBC) can then be removed safely by a forklift or pallet truck.
Palamatic Process Inc. has developed a complete range of packaging stations for bulk bag handling (FIBC, super sack, jumbo bag) to meet the needs of any bulk solids and powder processing industry. The FlowMatic®01 model is the cost-effective solution for simple packaging operations of bulk and powder products.

Big bag filling system FlowMatic 01- Bulk powder handling

Equipment advantages

- Width adjustment capable hooks for tensioning and optimal filling of all types of bulk bags
- Filling head with double casing prevents pressure build up of the bulk bag during packing operation
- Height adjustment of the loading hooks allows for operational flexibility
- Removal of the bulk bag possible with forklift or pallet truck

Media

View our equipment in videos

Bulk bag filling systems - FlowMatic® 01

Big bag filling system - Flowmatic 01

Palamatic Process has developed a complete range of packaging stations for big bag handling (FIBC, super sack, jumbo bag, bulk bag) to meet the needs of industries. The FlowMatic®01 model is the effec...

Bulk bag filling range

Gamme de station remplisseuse big bag - FlowMatic

10 models of big bag filling systems

View our equipment in photos

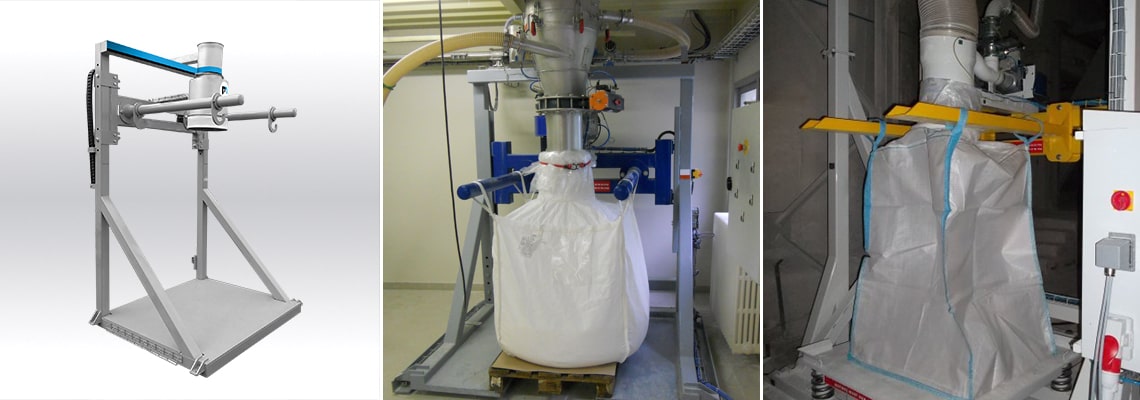

Flowmatic® 01 Palamatic Process Inc.

The FlowMatic® 01 model is suitable for simple filling of your bulk bags.

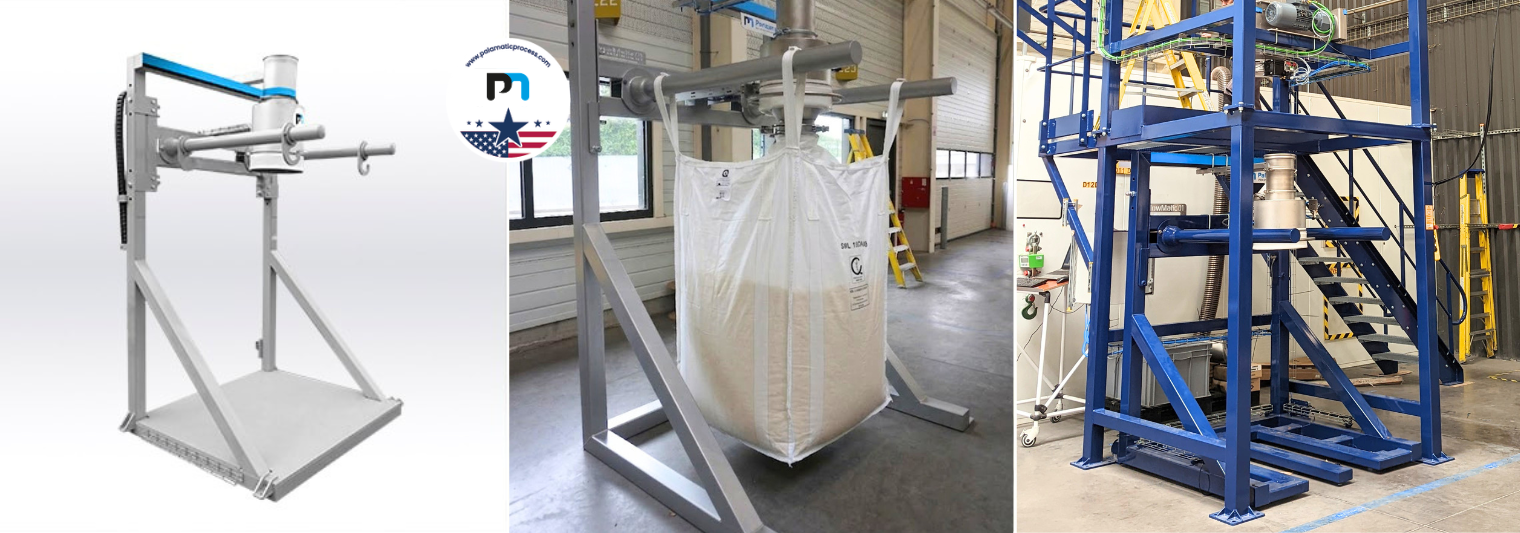

Flowmatic® 01 by Palamatic Process Inc.

FlowMatic® 01 bulk bag conditioner suitable for all types of powders.

Flowmatic 01 - bulk bag filler bulk materials

FlowMatic® 01 - Big bag packaging

Bulk material handling equipment for big bag filling

Double station: big bag filling

Process line for filling big bag with starch

Ultrasonic probe on bulk bag filling station

Complete processing line for the management and preparation of premixes

Big bag filling: food powder processing line

Cocoa packaging line with sieving

bulk bag conditioner bulk material palamatic process

big bag filling station

Filling with a inflatable seal ensures airtight packing of all types of big bags

powders big bag filling packing processing line

Bulk bag charger FlowMatic® 03

Combined station for packing big bags and drums for the chemical industry

bulk bag conditioner bulk materials feeding

Big bag packaging

Process filling line of barite in big bags: FlowMatic® 01

Big bag packing Palamatic Process

Packing in big bags of white sugar and crystal sugar: big bag filling line with a capacity of 40 big bags per hour

Big bag filling

Preparation of infant milk powder

Conveyor on bulk bag filling station

Big bag filling in hygienic zone (white zone) of sugar

Big bag filling line

Industrial line for packing glucose in big bags - Food industry.

Double station: big bag filling

Iron hydroxide mixing and conditioning line

big bag and drum fillling processing line

big bag and drum filling equipment

Filling line for packing plastic materials in drums and big bags

Filling hopper for big bag

Process line for mixing and packing phytotherapeutic materials

Big bag packaging

Industrial line for sugar processing

Through screw conveyor to feed the big bag filling machine

Trough screw for feeding the big bag filling station

Big bag packaging - FlowMatic® 01

Packing of carbon black - Chemical industry

Bulk bag loading flowmatic 01

Standard and ergonomic big bag filling station.

Features

Technical specification

Rate	10 to 20 bulk bags/h.
Capacity	2 tons/ bulk bag
Manufacturing materials	Painted steel, 304L stainless steel
Installed power	0.2 kW
Compressed air consumption	0.1 Nm³/h.
Dust removal rate	300 m³/h.

Finishing touches: RAL 9006, microblasted, electropolishing
Operating pressure: 6 bar
TOR input: 0
TOR output: 1
Maximum dimensions of the bulk bags: 1,550 (l) x 1,550 (L) x 2,400 (H) mm
U-shaped forks: enables the removal of the FIBC with the forks (optional)

Equipment integrated to FLOWMATIC model 01:
- Bulk bag loops round hooking forks: provides easier sliding of the big bag handles.
- U-shaped forks for attaching the handles of the super sack: enables the removal of the super sack directly from the handles with a forklift truck (no use of pallets).
- Support structure: the structure is manually height adjustable so it can be adapted to any type of bulk bag.
- Width adjustment: the center distance of the forks is width adjustable to optimize the filling operation but provides an increased stability of the flexible container on the pallet.
- Inflatable seal: The inflatable seal ensures an airtight connection between the filling head and the bulk bag during its filling.
- Filling head: the filling head is designed in a double casing for pressure volume balancing. The charged air is evacuated through the degassing line which can be connected to the dedusting system.

specification flowmatic01 big bag filling palamatic process

1. Round forks

2. Support structure

3. Width adjustment

4. Inflatable seal

5. Filling head

Download the technical questionnaire

Options

Available options

Connection under sleeve
Connection under sleeve

This equipment ensures a completely airtight connection for the big bag. The diameter is defined depending on the big bag or of the tightening ring.

This equipment ensures a completely airtight connection for the big bag. The diameter is defined depending on the big bag or of the tightening ring.

Discover
Conveyor
Conveyor

The big bag placed upon the pallet is evacuated by a motorized roller conveyor, thus optimizing production.

The big bag placed upon the pallet is evacuated by a motorized roller conveyor, thus optimizing production.

Discover
Hook - Handle
Hook - Handle

The equipment can be designed to accommodate big bags 1 handle big bags. A specific maintenance hook enables the positioning of the handle. This hook is set up on the height adjusting deck, thus keepi...
The equipment can be designed to accommodate big bags 1 handle big bags. A specific maintenance hook enables the positioning of the handle. This hook is set up on the height adjusting deck, thus keeping the system’s flexibility.

A curved feeding tube completes the system allowing to preserve a straight base on the big bag, ensuring an optimal filling.

Discover
Automatic big bag release
Automatic big bag release

Four articulated hooks are installed on the big bag reception deck. The automaton activated pneumatic cylinder controls the tilting of the hook at the end of the dosing process.

Four articulated hooks are installed on the big bag reception deck. The automaton activated pneumatic cylinder controls the tilting of the hook at the end of the dosing process.

Discover
Pallet unstacker
Pallet unstacker

In order to automate the big bag filling station, we propose the installation of an automatic pallet unstacker. The stacked pallets are stored in the warehouse, then feed one by one the big bag packin... g machine via a motorized conveyor.
In order to automate the big bag filling station, we propose the installation of an automatic pallet unstacker.
The stacked pallets are stored in the warehouse, then feed one by one the big bag packing machine via a motorized conveyor.

Discover
Load cells
Load cells

We incorporate load cells and an operator interface which ensure that the big bags are packed very accurately. Our bagging systems ensure you a commercial weighing. The protected integration of the lo...
We incorporate load cells and an operator interface which ensure that the big bags are packed very accurately.
Our bagging systems ensure you a commercial weighing. The protected integration of the load cells ensures an excellent service life of the equipment.

Additional options specific to big bag weighing such as communication in profibus mode or printing a weighing ticket can be integrated.

Our weighing partners are: Precia Molen, Sartorius, Master-K, Mettler Toledo, Philips, Siemens, Vishay Nobel.

Discover
Grounding clamp
Grounding clamp

Mass braids equip the entire station. A quick connection point allows the grounding of the big bags, thus creating an equipotential connection of the unit.

Mass braids equip the entire station. A quick connection point allows the grounding of the big bags, thus creating an equipotential connection of the unit.

Discover
Platform
Platform

It facilitates access to the upper part of the big bag filling machine to allow the closing of the bagging head of the flexible container.

It facilitates access to the upper part of the big bag filling machine to allow the closing of the bagging head of the flexible container.

Discover
Internal bag welding machine
Internal bag welding machine

Once the big bag is filled, it is evacuated to the cuff closing station. A thermo-welding system allows the big bag to be sealed tightly by the action of heated jaws on the inner bag. Welding technolo...
Once the big bag is filled, it is evacuated to the cuff closing station. A thermo-welding system allows the big bag to be sealed tightly by the action of heated jaws on the inner bag. Welding technologies can be adapted according to the characteristics of the big bag (aluminum inner bag).

Discover
Vibrating table
Vibrating table

In order to deaerate the product, a vibrating table activated by two electric motors optimizes the filling of the big bag.

In order to deaerate the product, a vibrating table activated by two electric motors optimizes the filling of the big bag.

Discover

Case studies

CASE STUDIES WITH THIS EQUIPMENT

Chemical
Compounding line
Processed products: plastic granules - Compounding line - Installation of a big bag and Flowbin emptying station containing powdery or granulated powders in a buffer hopper.
Food and Animal Feed
Preparation of dried fruit recipes
Processed products: dried fruit - Preparation of dried fruit recipes - This installation involves the feeding of dried fruit to a mixer. The various dried fruits are stored in bags, boxes and big bags... ...
Food and Animal Feed
Spray tower for packaging feed
Processed powders: skim milk powder / whole milk powder. Client in Africa.
