Big bag filling system - Bulk powder handling
Description

BIG BAG FILLING - Containment and stability

The FlowMatic® 02 system incorporates an inflatable containment seal and height adjustable big bag hanging hooks. The height of the hooks can be adjusted with a pneumatic cylinder which provides optimal tensioning of the FIBC during filling operation. The pneumatic tensioning cylinder also enables the packaging of big bags with varying dimensions. The filling head is designed with a double casing to ensure prevention of back pressure and dust emissions to the outside atmosphere.
The FlowMatic® 02 big bag filling station has a filling rate of 10 to 20 bulk bags per hour.

The width of the hanging hooks is manually adjustable, which further administers proper tensioning of the big bag and accommodation of varying FIBC dimensions. Therefore, both height and width adjustments ensure optimal and stable filling operation. The inflatable seal fixes the big bag spout to the station during the filling process and allows high flow rates to be processed.

The automatic height adjustment of the forks, with a tension cylinder, enables a tensioning of the big bag. This device ensures an optimal and stable filling. The inflatable seal seals the filling sleeve during the filling process and allows high flow rates to be processed.

  • Automation
    2
  • Rate
    2
  • Overall dimensions
    5



Operation procedure:
1. Installation of the big bag on the packaging station
2. Hermetic fixing of the big bag filling sleeve by inflatable joint
3. Tensioning of the big bag with the pneumatic cylinder
4. Big bag filling
5. Progressive lowering of the big bag by means of an adjustable valve
6. Depositing the big bag on its pallet: bottom forming (stability of the big bag during handling)
7. End of filling, deflation of the seal. The big bag is ready to be evacuated
8. Evacuation of the big bag by forklift truck or pallet truck, by the handling pallet or by the straps of the big bag.

Palamatic Process has developed a complete range of big bag conditioning systems (FIBC, super sack, jumbo bag) to meet the needs of various industries. The FlowMatic® 02 model represents an effective and flexible packing solution for the conditioning of powder and bulk solid materials. Flow rates range from 10 to 20 big bags/hr.

The FlowMatic® 02 big bag filling station includes an inflatable containment seal and an adjustable big bag hanging deck in height via a pneumatic cylinder. The entire adjustable structure allows the conditioning of big bags of different heights according to product densities. The filling head is designed with a double casing to ensure the balance of back pressure during discharge of material as well as avoiding any dust emission to outside atmosphere.
The tension cylinder ensures optimal shape of the big bag is maintained during the filling operation. The bottom of the big bag remains flat so it is safe to handle without the risk of tipping over.

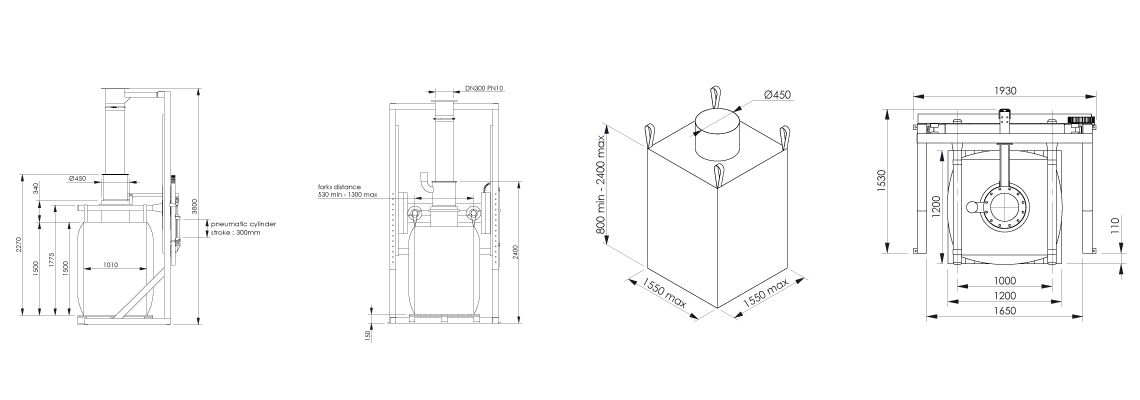

Big bag filling system Flowmatic 01 dimensions - Bulk powder handling

Equipment advantages

- Width adjustable hooks for optimal filling of all dimensions of big bags
- Inflatable seal to ensure dust containment and facilitate high flow rates (prevent back pressure)
- Tension cylinder to facilitate shape of the big bag during filling operation and for safer handling operations
- Removal of the big bag possible by forklift or pallet truck

Media

View our equipment in videos

Big bag filling systems - FlowMatic® 02

Remplissage big bags FlowMatic 02

Flowmatic 02 - Efficiency, containment and packaging efficiency

Gamme de stations de remplissage big bag

Bulk bag filling range

View our equipment in photos

Flowmatic 02 - Palamatic Process

FlowMatic® 02 - Palamatic Process



Big bag Conditioner FlowMatic® 02 by Palamatic Process.

big bag filling vacuum pneumatic conveying

Conveying cyclone on big bag loading station

The big bag filling stations are fed by pneumatic vacuum conveying cyclones.

flowmatic 02 bulk bag filler

Big bag packing - FlowMatic® 02

FlowMatic® 02 big bags filling on egg powder production line.

big bag packing bulk processing flowmatic02

Big bag filling equipment - FlowMatic® 02

Feeding of a filling machine with sulphate by pneumatic conveying under dense phase.

big bag filling system raw material access platform

Octabin filling system with platform

The big bag filling station also provides the possibility of filling big bags with maltodextrin.

big bag production line

Big bag filling line

Dispacking, storage and transport for dissolution of sugar in a weighed cast iron tank.

bulk bag conditioner under screw conveyor

Big bag filling with screw conveyor

Filling big bags with titanium dioxide.

bulk bag conditioner bulk material palamatic process

Bulk bag filling system

Big bag filling system with "U" shaped fork.

bulk bag conditioner bulk powder treatment

Bulk bag packing- Palamatic Process

The big bag is loaded with alumina via a tubular screw conveyor.

palamatic process bulk bag conditioner

Filling head

Packing of caseinate in big bags.

bulk materials handling big bag filling system

Bulk bag filling line

Additive mixing line and premix packaging: flavours for dogs and cats.

sack and bulk bag conditioner

Big bag & sack filling system

Installation of 2 raw bulk material deconditioning stations (dried plants and seeds): big bags or containers discharging and manual opening of bags for mixing feeder

bulk bag conditioner bulk powder treatment

Big bag filling Palamatic Process

Reconditioning of spices from storage containers.

powders big bag filling industrial line

Bulk bag packing - FlowMatic® 02

Process feeding for plasterboard manufacture.

bulk bag conditioner packaging

Sugar packing in a big bag

Packing of sugar in big bags.

bulk bag conditioner bulk materials feeding

Big bag filling equipment

Packing of iron sulphates in big bags.

automatic bulk bag conditioner

Automatic bulk bag conditioner

Feeding of a filling machine by pneumatic conveying under dense phase for brown sugar, cane sugar, white sugar.

bulk handling packaging palamatic process

Bulk materials handling - Big bag filling

Production line for the production of food flavours.

big bag charger bulk processing flowmatic01

Big bag packing

Cocoa packaging line fed by a pneumatic conveying system.

automatic process line big bag filling

Big bag filling line

Big bag filling station on glue industrial production line.

Big bag filling under screw conveyor

Screw conveyor on big bag filling

Big bag loading station in a calcium carbonate factory.

big bag filling control cabinet

Automation big bag filling station

Automation on FlowMatic® 02 barite filling line in big bags.

level probe

Level probe on big bag filling station

FlowMatic® 02 big bag filling with iron sulphate.

big bag filling

Big bag filling

Big bag filling with powders for the manufacture of glues and adhesive products

big bag filling

Double big bag filling station

Big bag filling with bulk materials for the manufacture of products for the chemical industry.

control screen big bag filling station

Pal'Touch® technology

PLC on a big bag packaging line with corn starch.

ergonomic positioning of the big bag

Ergonomic positioning of the big bag

Mineral conditioning in big bags.

big bag loading

Big bag filling hopper

Packing line for big bags with one loop with seeds.

big bag filling raw materials

Big bag filling system with hopper

Filling of big bags with white minerals, talc and carbonates under hopper.

food application big bag filling

Big bag filling of powder for the food industry

Packing of food starch in a big bag.

bulk bag conditioner bulk powder treatment

Bulk bag conditioner bulk powder treatment

Packing of polypropylene beads on compound line for the petrochemical industry.

big bag filling mixer

Big bag filling mixer

The big bags are packed on a FlowMatic® 03 station with an airtight connection head with a inflatable seal.

powders big bag filling packing processing line

Powder big bag filling

Hygienic big bag packing station for fattened milk powder.

bulk bag loading

Bulk bag loading

This application concerns a station for packaging granules into big bags from a buffer hopper.
The big bag packaging station is equipped with a weighing system controlled by a slide-gate valve to stop the flow of the material once the target weight has been reached. The evacuation of the filled big bag is carried out by electric pallet truck.

big bag conditioner bulk solid material

Big bag filling system on pneumatic conveying line

The vacuum conveying cyclone is used to supply the big bag filling station with metallic powders.

big bag conditioner bulk processing palamatic process

FlowMatic® 02 big bag conditioner

Big bag filling station FlowMatic® 02 hygienic design. A rotary valve is integrated to regulate the filling rate.

bulk bag packing bulk powder treatment flowmatic02

Bulk bag packing - FlowMatic® 02

Loading a chemical reactor from a big bag filling station with round forks.

bulk bag packing bulk processing flowmatic02

FlowMatic® 02 with hopper

Filling of big bags with fluorinated derivatives on an ethanol production line.

big bag packing bulk processing flowmatic 02

Steel hopper on big bag filling station

Painted steel finishes stand for the packing of big bags with synthetic chemical materials.

big bag packing bulk processing palamatic process flowmatic02

Big bag packing bulk processing

Process for the production of ammonium bi-fluoride for the petrochemical industry.

flowmatic 02 big bag filling

FlowMatic® 02 on pneumatic conveying line

The round forks of the big bag filling station are adjustable in width and facilitate the removal of the big bag.

mixing line pneumatic conveying

Filling line on pneumatic conveying

Integrated equipment :


- Dense phase vaccum conveying - VFlow® 03

- Mixer ploughshares & blades

- Vibratory screener on pneumatic conveying line

- Big bag filling system - FlowMatic® 02

fill big bag rotary valve flowmatic02

Big bag packing - FlowMatic® 02

Big bag filling with drop through rotary airlock valve

big bag filling conveying screw

Big bag filling conveying screw

Big bag filling station fed by a manual bag dump station Sacktip®.

fill big bag vibratory sieve

Packaging line

The hygienic bag dump station Sacktip® SE feeds the big bag filling station. The bulk materials is conveyed without damage using an easyclean conveying screw.

sack dumping station with sieve

Big bag filling line

The bag dump screener station Sacktip® SE feeds the big bag filling station. The powder or bulk material is carried without damage by an easyclean conveying screw. In order to avoid agglomerates, a vibrating screen is installed under the bag dump station.

big bag conditioner filling head

Filling head FlowMatic® 02

Supply of additives in for compounding extrusion lines.

flowmatic02 bulk bag filler

Big bag filling system - FlowMatic® 02

The tension cylinder ensures a perfectly filled and stable big bag for big bag handling operations.

flowmatic 02 bulk bag filler

Bulk materials handling - Big bag filling system

The forks of the big bag loading station are provided with adjustable forks for optimal filling of all types of big bags.

fill big bag pneumatic conveying

Big bag filling on pneumatic conveying line

Process for tanning additives: feeding a chemical dispersion process from big bags in the paint sector.

flowmatic 02 big bag filling

Cocoa powder - Bulk bag filling

Features

Technical specification

Rate 10 to 20 big bags/h.
Capacity 2 tons/big bag
Manufacturing materials Painted steel, 304L stainless steel
Installed power 0.2 kW
Compressed air consumption 0.9 Nm³/h.
Dust removal rate 300 m³/h.



Finishing touches: RAL 9006, microblasted, electropolishing
Operating pressure: 6 bar
TOR input: 0
TOR output: 2
Maximum dimensions of the big bags: 1,550 (l) x 1,550 (L) x 2,400 (H) mm
U-shaped forks: enable the removal of the big bag by the handles (optional)

Integrated equipment to the FlowMatic® 02 model:

- Round forks for attaching the handles of the big bag: offers an easier sliding of the handles of the big bag.
- U-shaped forks for attaching the big bag handles: allows the big bag to be evacuated directly through the handles using a forklift truck (no pallet is used).
- Support structure: the structure is manually height adjustable to adapt to all types of big bag
- Width adjustment: the center distance of the forks is width adjustable to optimize the filling operation but provides an increased stability of the flexible container on the pallet.
- Inflatable seal: The inflatable seal ensures an airtight connection between the filling head and the big bag during its filling.
- Filling head: the filling head is designed in a double casing for volume balancing. The charged air is evacuated through the degassing line which can be connected to the dedusting network.
- Tension cylinder: the pneumatic cylinder is installed on the deck of the suspension forks. It allows to bring the system for attaching the handles of the big bag to ergonomic height, to adjust to the different big bag heights and to give an optimal shape to the big bag thanks to the permanent tensioning during the whole conditioning phase. The big bag is perfectly filled without any risk of pocketing and can be handled safely, without any risk of it tipping over.

Options

Available options

  • Big bag filling system - Bulk powder handling
    Big bag filling system - Bulk powder handling

    Conveyor

    The big bag placed upon the pallet is evacuated by a motorized roller conveyor, thus optimizing production.

  • Big bag filling system - Bulk powder handling
    Big bag filling system - Bulk powder handling

    Mobile station

    The bagging stations can integrate handling sleeves allowing the handling of the assembly on the forklift truck or pallet truck.
    These mobile big bag packaging stations allow the conditioning of the big bags under separate feeding points or truck loading handles.

    Versions with rails and wheels are available as standard at Palamatic Process.

  • Big bag filling system one loop - Bulk powder handling
    Big bag filling system one loop - Bulk powder handling

    Hook - Handle

    The equipment can be designed to accommodate big bags 1 handle big bags. A specific maintenance hook enables the positioning of the handle. This hook is set up on the height adjusting deck, thus keeping the system’s flexibility.

    A curved feeding tube completes the system allowing to preserve a straight seat on the big bag, ensuring an optimal filling.

  • Big bag filling automatic release - Bulk powder handling
    Big bag filling automatic release - Bulk powder handling

    Automatic release

    Four articulated hooks are installed on the big bag reception deck. The automaton activated pneumatic cylinder controls the tilting of the hook at the end of the dosing process.

  • Big bag filling system - Unstacker
    Big bag filling system - Unstacker

    Pallet unstacker

    In order to automate the big bag filling station, we propose the installation of an automatic pallet unstacker.
    The stacked pallets are stored in the warehouse, then feed one by one the big bag packing machine via a motorized conveyor.

  • Station de remplissage big bag Palamatic Process avec pesons intégrés
    Station de remplissage big bag Palamatic Process avec pesons intégrés

    Load cells

    We incorporate load cells and an operator interface which ensure that the big bags are packed very accurately.
    Our bagging systems ensure you a commercial weighing. The protected integration of the load cells ensures an excellent service life of the equipment.

    Additional options specific to big bag weighing such as communication in profibus mode or printing a weighing ticket can be integrated.

    Our weighing partners are: Precia Molen, Sartorius, Master-K, Mettler Toledo, Philips, Siemens, Vishay Nobel.

  • Big bag filling system - Grounding clamp
    Big bag filling system - Grounding clamp

    Grounding clamp

    Mass braids equip the entire station. A quick connection point allows the grounding of the big bags, thus creating an equipotential connection of the unit.

  • Big bag filling system - Platform - Palamatic Process
    Big bag filling system - Platform - Palamatic Process

    Platform

    It facilitates access to the upper part of the packaging machine to allow the closing of the bagging head of the flexible container.

  • Big bag filling system - Welding
    Big bag filling system - Welding

    Internal bag welding machine

    Once the big bag is filled, it is evacuated to the cuff closing station. A thermo-welding system allows the big bag to be sealed tightly by the action of heated jaws on the inner bag. Welding technologies can be adapted according to the characteristics of the big bag (aluminum inner bag).

  • Big bag filling system - Vibratory table
    Big bag filling system - Vibratory table

    Vibrating table

    In order to deaerate the product, a vibrating table activated by two electric motors optimizes the filling of the big bag.

  • Big bag filling system - Pre-inflation fan
    Big bag filling system - Pre-inflation fan

    Fan

    Pre-inflation fan: the fan on the station ensures the shaping of the big bag. It also facilitates the filling of big bags equipped with an internal pocket (PE or aluminized). A by-pass valve completes the air line, thus allowing the degassing of fines captured by the double casing tube during the conditioning phase.

Case studies
  • Wheat bran and lime premix line

    Processed powders: wheat bran and lime with a bulk density of 0.4 to 1 kg/m³ - Wheat bran and lime premix line - Estonian engineering company specialized in the design of industrial operations for the...
  • Seeds packing line

    Processed products: corn seeds - Seeds packing line - Installation for conditioning corn seeds in big bags. The big bag filling station is supplied upstream via a slide gate valve and a flexible...
  • Pharmaceutical contrast products

    Processed powder: pharmaceutical active ingredient - Pharmaceutical contrast products - The customer is a pharmaceutical factory manufacturing injectable substances for the medical sector.
  • Loading drums and big bags

    Processed powder: chromium powder - Drum and big bag loading - The objective is to screen and package in big bags or drums chromium powder with an integrated dosing system.
  • Refiom processing line

    Processed products: fly ashes and ash embers - Refiom processing line - Big bag filling in thermal power plant in a household waste incineration plant.
Express quote

Receive our quotation in 3 clicks!

Download the booklet
Devis express

ADDITIONAL EQUIPMENT

Big bag compactor - CBB125

Containment and management of empty big bags

Flowmatic®03 Big bag filling system

Containment, Suspended weighing, Tension of big bag

Flowmatic®04 Big bag filling system

Containment, Tension of big bag, Big bag forming,Weighing , Automated...

Big bag discharging - Stripping box - Easyflow EF0

Unlacing cabinet, Electric hoist loading, Forklift truck loading, Low...

Empty big bag packaging - Pal'Packs

Circular, square or with loading trough models, made of virgin...
production line palamatic process

Come and test our equipment in our test plant

1. Vos coordonnées

Je souhaite avoir plus d'information :

2. En quoi pouvons-nous vous aider ?

Notez que les champs marqués d'une étoile "*" sont obligatoires pour l'envoi de votre message.
