Description
The industrial pin mill (also known as a universal mill, turbo mill, and impact mill) is a one pass grinding equipment ideal for achieving the micronization of bulk materials and powdered products. Common applications involve the fine grinding of sugar, salt, sodium bicarb, etc. The average achievable particle size range of the pin mill is around a d50 of 80 microns. Results can vary depending on the material, rates, feed, etc.
Made from mild steel, stainless steel 304L or 316L
4 models according to required feed rates and capacities: 160, 315, 500 and 630
Industrial mill range


The Poly-Mill industrial grinder is the ideal solution for milling a wide range of bulk products. Each milling system requires a specific solution according to the expected particle size range. The Poly-Mill grinder can be fitted with several easily interchangeable milling tools to adapt to the specific needs of each application. Custom designs for CIP milling requirements and turn-key solutions available with our experienced engineering staff capabilities.
Models | UM160 | UM315 | UM500 | UM630 |
---|---|---|---|---|
Power in kW | 5.5 | 18.5 | 37 | 75 |
Theorical flow in m³/hr. | 250 | 1,000 | 2,000 | 3,600 |
Scale factor | 0.25 | 1 | 2 | 3 |
* These flow rates are given on a production of icing sugar with an output size < to 130µm for 98%
-
Precision5
-
Rate3
FOOD PROCESSING APPLICATION


Operating sequence

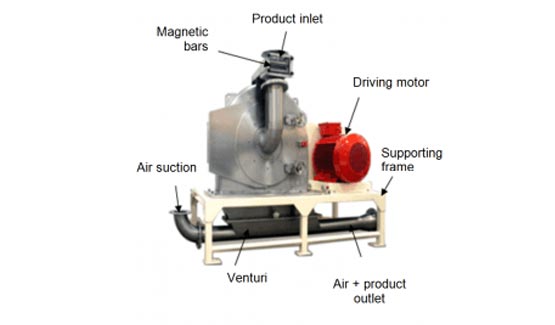

The feed of bulk materials is supplied to the center of the grinding medium (pin discs). A magnetic separator is integrated in the feed inlet leading into the grinding chamber for protection of the mill. The one pass mill process is conducted via the impact milling medium, which are rows of pins concentrically mounted on rotary discs. The RPM of the discs are adjustable by variable speed controls (can be supplied in addition to the mill) which can produce finer or coarser grinds. The particle size of the powder output is determined by three main factors:
1 - Rotation speed
2 - Number and shape of the pins
3 - Air flow rate


Applications:
- Food processing
- Spices
- Pharmaceuticals
- Animal feed
- Chemicals
- Wood and plywood
- Mineral powders
- Plastics
Equipment advantages
- Design configuration according to available space
- Easy access to grinding chamber via swing-away door and interchangeable grinding media
- Reinforced feed inlet design ensuring high rotation velocity and dust tight sealing
- Ultra fine particle size milling
- Adjustable quantities of pin rows for more or less impact surfaces
Media
View our equipment in videos
Industrial milling - Micronising - Grinding - Palamatic Process
The industrial mill POLY-MILL Palamatic Process is the ideal solution for milling a wide range of bulk products. Each milling system requires a specific solution according to the expected particule size. Come and test your materials with our UM160 grinder in our test plant!
4 models of UM Palamatic process mills
Range of mills for powder products
View our equipment in photos

Industrial crusher machine Palamatic Process
Industrial grinding machine by Palamatic Process.

Industrial mill Palamatic Process
The industrial mill is the ideal solution for crushing bulk material and powdery products.

Gamme de broyeurs
Gamme des broyeurs à broches pour la micronisation des poudres.

industrial mill for micronizing powder palamatic process
The industrial crusher is fed by a big bag and bag emptying station (Duopal 0).
By means of a pneumatic conveying system VFlow® the rice feeds the mill.

Rice milling Palamatic Process
Micronization of rice for the production of rice flour.

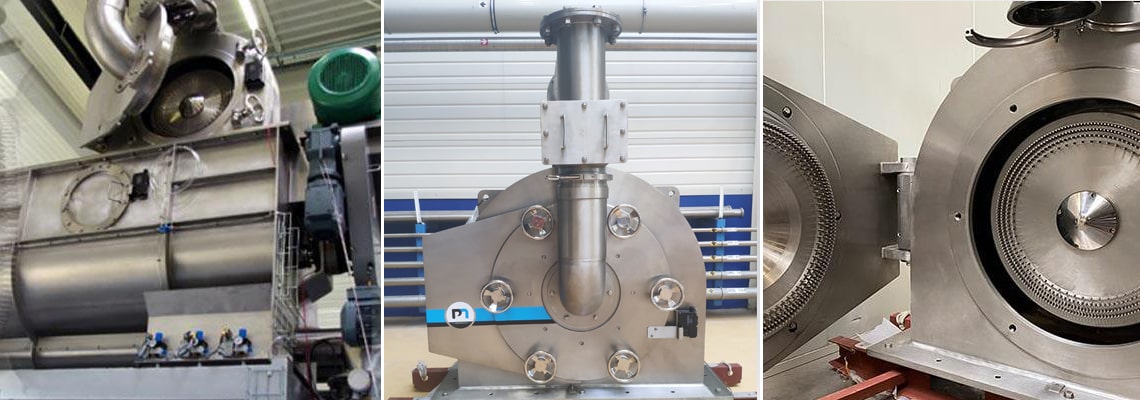

Industrial pin mill
The Palamatic Process pin mill is fitted with two rotating discs, which allows a high powder fineness to be obtained.

Bulk materials test station grinding mill
The bulk material is fed centrally. A magnetic separator is integrated upstream of the grinding chamber.

Industrial grinding Palamatic Process
The motor assembly of the industrial mill is carried out according to your installation constraints.

Rice flour grinding
The industrial crusher is the ideal solution for crushing a wide variety of bulk material and powdery products.

Industrial milling wheat semolina
Micronization of semolina. Come and test your industrial mill in our test station.

Industrial milling wheat semolina size reduction
Micronization of semolina. Come and test your industrial mill in our test station.

Industrial mill test plant
The Palamatic Process mills are used for fine grinding of dry, friable or difficult-to-mill materials.

Powder milling Palamatic Process
The grinding is done by impacts between the rows of spindles mounted concentrically on the rotating disc.

Bulk milling Palamatic Process
The granulometry of the powders at the outlet is defined by three main factors:
- The speed of rotation
- The number and shape of the pins
- The flow of air through the system

Pin mill Palamatic Process
Access to the grinding chamber is simple thanks to a wide opening and the possibility of addition of tool: installation of blades and calibration cages.

Size reduction rice pin mill
Micronization of rice for the production of rice flour. Come and test your industrial mill in our test station.

Test plant industrial pin mill
Reinforced shaft passage design for high speed rotation and total sealing.

Grinding mill
Ultra fine grain size thanks to very high rotational speed: up to 6,000 rpm.

Mill granulation Palamatic Process

Conical grinding mill
Industrial grinding on industrial production line for the manufacture of veterinary products.

Industrial grinder Palamatic Process
The results obtained with our industrial crushers are the valorization of materials, as well as a greater ease of storage and transport.

Industrial grinding mill bulk handling solutions
Industrial mill on a food production line.

Broyeur industriel manutention poudres vrac

Industrial grinding mill
The flexibility of industrial mills makes them very popular in different industrial sectors: pharmaceuticals, food processing, mineral powders, chemicals (fertilizers, pesticides, paints, pigments).

Grinding mill

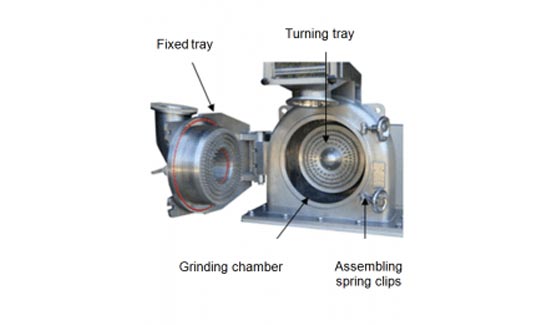

The pin mill is provided with a grinding chamber with a rotating pin rotor and a fixed pin stator to obtain a very fine powder.

Grinding mill food industry
The grinding fineness can be adjusted by changing the speed of the spindle rotor but also by the feed rate of the mill.

Powder industrial mill
The large grinding chamber even makes it possible to grind bulk materials that tend to clog.

Industrial milling
The hammer mill can be used to crush all types of cereals and dry products.

Skid for grinding, mixing and packaging icing sugar
This installation consists in transforming crystal sugar into icing sugar in order to obtain a great fineness of the grain for an efficient and optimal use in the chocolate paste. The purpose is to avoid the creation of clods without the addition of additives.

Industrial mill for powders
Easily accessible grinding chamber thanks to the opening of the stationary spindle disc door.

Granules industrial milling
Crushing chamber to access the rotating spindle disc.

Crystal sugar miller
Complete micronization and packing line of icing sugar in bags.

Icing sugar milling
Micronization of crystal sugar into icing sugar for bag packing.

Industrial crushing mill
The Palamatic Process industrial mill is connected to a control cabinet (industrial automation). The operator can thus remotely control the micronization process.

Granulometric curve industrial mill
This is the operation consisting in studying the distribution of the different grains of a ground sugar sample.

Magnetic detector crushing mill
Magnetic detection systems are part of this approach by separating ferrous metal particles, even those of low magnetization or very fine size, from the flow of the flowing bulk material.

Grinding mill tests
Crushing unit for pure icing sugar bag packing.

Industrial grinder
Deconditioning system to a grinding stand for peanuts.

Size reduction grinding mill
Complete micronization line and packing of seaweed in bags.

Size reduction grinding mill Palamatic Process
The POLY-MILL mill offers excellent crushing quality over long production periods.

Semolina size reduction
Production of hard wheat semolina for the production of food products such as fresh pasta.

Particle reduction grinder
Grinding of food powder, dry chemical powder or pharmaceutical powder.
Features
Technical specification
The Poly-Mill grinding mill offers great grinding reliability over long production periods. Designed with very high resistance mechanics, it offers not only efficiency and safety of use, but also ease of maintenance and cleaning. The risks of cross contaminations are almost nul.
Milling tools:
- Pins, with or without screen
- Mobile or fixed hammers
- Paddles
- Knives
Results focus: fine, medium or coarse grinding, crushing, grinding, fiber separation for all types of bulk materials to be processed.
Model (1) UM-315 UM-500 UM-630
Model (1) |
|
UM-315 |
UM-500 |
UM-630 |
---|---|---|---|---|
Type of milling |
||||
Paddles |
Kw |
18.5 |
37 |
75 |
Pins |
Kw |
18.5 |
37 |
75 |
Standard speed |
||||
Paddles |
t/min |
7,300 |
4,600 |
3,500 |
Pins |
t/min |
8,150 |
5,900 |
4,900 |
Motor |
t/min |
2,880 |
1,440 |
1,440 |
Weight (2) |
KGS. |
315 |
650 |
1,200 |
Flow coefficient |
|
1 |
2 |
3.2 |
Dimensions :

Models | A | B | C | D | ØD1 | ØD2 | E | F | G | KW | Max Air Volume m³/h. |
---|---|---|---|---|---|---|---|---|---|---|---|
UM 160 | 625 | 645 | 714 | 1,340 | 76 | 165 | 660 | 1,210 | 1,115 | 5.5 | 500 |
UM 315 | 910 | 1,035 | 614 | 1,524 | 168 | 280 | 910 | 1,470 | 1,105 | 18.5 | 1,500 |
UM 500 | 1,185 | 1,035 | 614 | 1,800 | 219 | 336 | 910 | 1,470 | 1,280 | 37 | 3,200 |
UM 630 | 1,450 | 1,335 | 614 | 2,065 | 219 | 336 | 1,215 | 2,620 | 1,462 | 75 | 5,000 |
